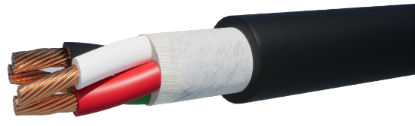

16 AWG 4 conductor 26 strand bare copper with PVC insulation, unshielded with an overall PVC jacket 300V flex cord cable, approved for use in sunlight and weather resistant 105°C applications.

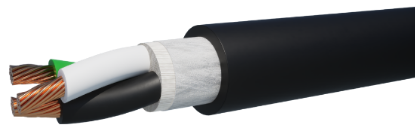

16 AWG 5 conductor 26 strand bare copper with PVC insulation, unshielded with an overall PVC jacket 300V flex cord cable, approved for use in sunlight and weather resistant 105°C applications.

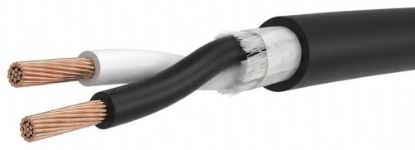

18 AWG 2 conductor 16 strand bare copper with PVC insulation, unshielded with an overall PVC jacket 300V flex cord cable, approved for use in sunlight and weather resistant 105°C applications.
18 AWG 3 conductor 16 strand bare copper with PVC insulation, unshielded, with an overall PVC jacket 300V flex cord cable, approved for use in sunlight and weather resistant 105°C applications.
| Product | AWG Size & Stranding | Conductor Count | Jacket Thickness | Cable OD | Cable Weight |
|---|---|---|---|---|---|
| SJTOOW164 | 16 AWG 26 Strands | 4 Conductors | 0.032” | 0.368” | 86 lbs./Mft. |
| SJTOOW165 | 16 AWG 26 Strands | 5 Conductors | 0.032” | 0.404” | 99 lbs./Mft. |
| SJTOOW182 | 18 AWG 16 Strands | 2 Conductors | 0.032” | 0.290” | 40 lbs./Mft. |
| SJTOOW183 | 18 AWG 16 Strands | 3 Conductors | 0.032” | 0.310” | 54 lbs./Mft. |
| SJTOOW184 | 18 AWG 16 Strands | 4 Conductors | 0.032” | 0.340” | 66 lbs./Mft. |
| SJTOOW185 | 18 AWG 16 Strands | 5 Conductors | 0.032” | 0.369” | 81 lbs./Mft. |
