12 AWG 4 conductors 7 strand bare copper wire, PVC insulation, shielded with an overall PVC jacket. (UL) ITC or PLTC 105’C SUN RES DIR BUR FT-4 “ROHS”
14 AWG 4 conductors 7 strand bare copper wire, PVC insulation, shielded with an overall PVC jacket. (UL) ITC or PLTC 105’C SUN RES DIR BUR FT-4 “ROHS”
16 AWG 4 conductors 7 strand bare copper wire, PVC insulation, shielded with an overall PVC jacket. (UL) ITC or PLTC 105’C SUN RES DIR BUR FT-4 “ROHS”
16 AWG 6 conductors 7 strand bare copper wire, PVC insulation, shielded with an overall PVC jacket. (UL) ITC or PLTC 105’C SUN RES DIR BUR FT-4 “ROHS”
18 AWG 4 conductors 7 strand bare copper wire, PVC insulation, shielded with an overall PVC jacket. (UL) ITC or PLTC 105’C SUN RES DIR BUR FT-4 “ROHS”
20 AWG 4 conductors 7 strand bare copper wire, PVC insulation, shielded with an overall PVC jacket. (UL) ITC or PLTC 105’C SUN RES FT-4 “ROHS”
20 AWG 6 conductors 7 strand bare copper wire, PVC insulation, shielded with an overall PVC jacket. (UL) ITC or PLTC 105’C SUN RES FT-4 “ROHS”
22 AWG 6 conductors 7 strand bare copper wire, PVC insulation, shielded with an overall PVC jacket. (UL) ITC or PLTC 105’C SUN RES FT-4 “ROHS”
| Product | AWG Size & Stranding | Conductor Count | Jacket Thickness | Cable OD | Cable Weight |
|---|---|---|---|---|---|

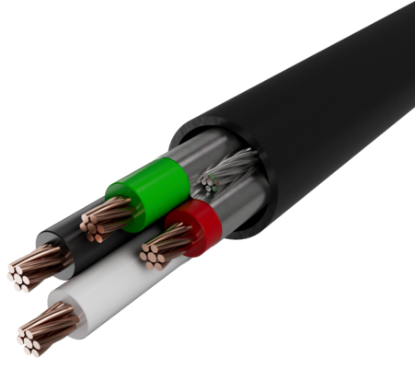

| T124S | 12 AWG 7 Strands Class B | 4 Conductors | 0.050” | 0.428” | 152 Lbs/Mft |

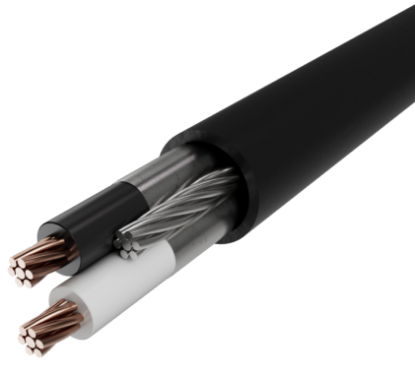

| T142S | 14 AWG 7 Strands Class B | 2 Conductors | 0.040” | 0.308” | 67 Lbs/Mft |

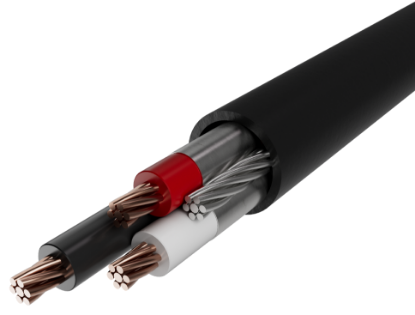

| T143S | 14 AWG 7 Strands Class B | 3 Conductors | 0.040” | 0.329” ± 0.030” | 86 Lbs/Mft |
| T144S | 14 AWG 7 Strands Class B | 4 Conductors | 0.040” | 0.355” | 102 Lbs/Mft |
| T164S | 16 AWG 7 Strands Class B | 4 Conductors | 0.040” | 0.302” | 71 Lbs/Mft |
| T166S | 16 AWG 7 Strands Class B | 6 Conductors | 0.040” | 0.352” | 97 Lbs/Mft |
| T184S | 18 AWG 7 Strands Class B | 4 Conductors | 0.035” | 0.258” | 50 Lbs/Mft |
| T186S | 18 AWG 7 Strands Class B | 6 Conductors | 0.040” | 0.313” | 72 Lbs/Mft |
| T204S | 20 AWG 7 Strands Class B | 4 Conductors | 0.035” | 0.233” | 38 Lbs/Mft |
| T206S | 20 AWG 7 Strands Class B | 6 Conductors | 0.040” | 0.289” | 55 Lbs/Mft |
| T226S | 22 AWG 7 Strands Class B | 6 Conductors | 0.035” | 0.254” | 40 Lbs/Mft |
| T224S | 22 AWG 7 Strands Class B | 4 Conductors | 0.035” | 0.218” | 30 Lbs/Mft |
