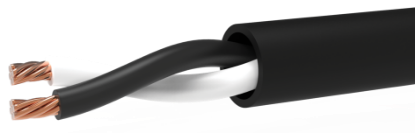

22 AWG 2 conductors 7 strand bare copper wire, PVC insulation, with an overall PVC jacket. (UL) ITC or PLTC 105’C SUN RES FT-4 “ROHS”
20 AWG 6 conductors 7 strand bare copper wire, PVC insulation, with an overall PVC jacket. (UL) ITC or PLTC 105’C SUN RES FT-4 “ROHS”
20 AWG 4 conductors 7 strand bare copper wire, PVC insulation, with an overall PVC jacket. (UL) ITC or PLTC 105’C SUN RES FT-4 “ROHS”
18 AWG 4 conductors 7 strand bare copper wire, PVC insulation, with an overall PVC jacket. (UL) ITC or PLTC 105’C SUN RES DIR BUR FT-4 “ROHS”
18 AWG 3 conductors 7 strand bare copper wire, PVC insulation, with an overall PVC jacket. (UL) ITC or PLTC 105’C SUN RES DIR BUR FT-4 “ROHS”
| Product | AWG Size & Stranding | Conductor Count | Jacket Thickness | Cable OD | Cable Weight |
|---|---|---|---|---|---|
| T222 | 22 AWG 7 Strands Class B | 2 Conductors | 0.035” | 0.191” | 19 Lbs/Mft |
| T206 | 20 AWG 7 Strands Class B | 6 Conductors | 0.040” | 0.285” | 51 Lbs/Mft |
| T204 | 20 AWG 7 Strands Class B | 4 Conductors | 0.035” | 0.235” | 35 Lbs/Mft |
| T202 | 20 AWG 7 Strands Class B | 2 Conductors | 0.035” | 0.208” | 24 Lbs/Mft |

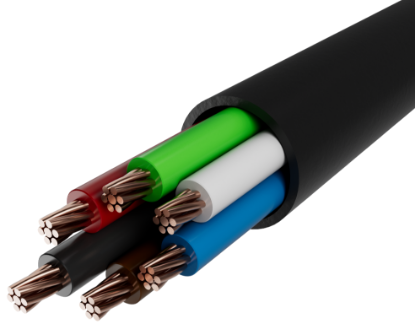

| T186 | 18 AWG 7 Strands Class B | 6 Conductors | 0.040” | 0.311” | 68 Lbs/Mft |
| T184 | 18 AWG 7 Strands Class B | 4 Conductors | 0.035” | 0.256” | 46 Lbs/Mft |
| T183 | 18 AWG 7 Strands Class B | 3 Conductors | 0.035” | 0.236” | 37 Lbs/Mft |
