20 AWG 4 conductors 7 strands bare copper wire, XLPE insulation, unshielded, with an overall PVC jacket, (UL) PLTC, ITC 90’C DRY/WET SUN RES FT-4
18 AWG 4 conductors 7 strands bare copper wire, XLPE insulation, unshielded, with an overall PVC jacket, (UL) PLTC, ITC 90’C DRY/WET SUN RES FT-4
16 AWG 6 conductors 7 strands bare copper wire, XLPE insulation, unshielded, with an overall PVC jacket, (UL) PLTC, ITC 90’C DRY/WET SUN RES FT-4
16 AWG 4 conductors 7 strands bare copper wire, XLPE insulation, unshielded, with an overall PVC jacket, (UL) PLTC, ITC 90’C DRY/WET SUN RES FT-4
12 AWG 4 conductors 7 strands bare copper wire, XLPE insulation, unshielded, with an overall PVC jacket, (UL) PLTC, ITC 90’C DRY/WET SUN RES FT-4
20 AWG 3 conductors 7 strand bare copper wire, XLPE insulation, unshielded, with an overall PVC jacket, (UL) PLTC, ITC.
| Product | AWG Size & Stranding | Conductor Count | Jacket Thickness | Cable OD | Cable Weight |
|---|---|---|---|---|---|
| TX204 | 20 AWG 7 Strands Class B | 4 Conductors | 0.035” | 0.231” | 37 Lbs/Mft |
| TX184 | 18 AWG 7 Strands Class B | 4 Conductors | 0.035” | 0.305” | 47 Lbs/Mft |
| TX166 | 16 AWG 7 Strands Class B | 6 Conductors | 0.040” | 0.347” | 96 Lbs/Mft |
| TX164 | 16 AWG 7 Strands Class B | 4 Conductors | 0.040” | 0.294” | 68 Lbs/Mft |
| TX144 | 14 AWG 7 Strands Class B | 4 Conductors | 0.040” | 0.352” | 101 Lbs/Mft |
| TX124 | 12 AWG 7 Strands Class B | 4 Conductors | 0.050” | 0.425” | 144 Lbs/Mft |
| TX203 | 20 AWG 7 Strands Class B | 3 Conductors | 0.035” | 0.217” | 32 Lbs/Mft |

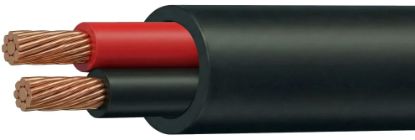

| VX82 | 8 AWG 7 Strand Class B | 2 Conductors | 0.060" | 0.596" | 229 Lbs./Mft. |

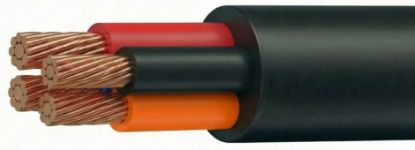

| VX44 | 4 AWG 7 Strand Class B | 4 Conductors | 0.080" | 0.942" | 823 Lbs./Mft. |
