Found 9 products.
Sort by
Display per page
16 AWG 3C 7STR TC OAS XLPE/LSZH (UL) TC-ST1-ER 600V 90C
16 AWG 4C 7STR TC OAS XLPE/LSZH (UL) TC-ST1-ER 600V 90C
16 AWG 5C 7STR TC OAS XLPE/LSZH (UL) TC-ST1-ER 600V 90C
16 AWG 7C 7STR TC OAS XLPE/LSZH (UL) TC-ST1-ER 600V 90C
16 AWG 12C 7STR TC OAS XLPE/LSZH (UL) TC-ST1-ER 600V 90C
16 AWG 19C 7STR TC OAS XLPE/LSZH (UL) TC-ST1-ER 600V 90C
16 AWG 25C 7STR TC OAS XLPE/LSZH (UL) TC-ST1-ER 600V 90C
16 AWG 37C 7STR TC OAS XLPE/LSZH (UL) TC-ST1-ER 600V 90C
16 AWG 2C 7STR TC OAS XLPE/LSZH (UL) TC-ST1 600V 90C
| Product | AWG Size & Stranding | Conductor Count | Jacket Thickness | Cable OD | Cable Weight |
|---|
| VXH163ST | 16 AWG 7 Strands Class B | 3 Conductors | 0.045" | 0.346" | 74 lbs./Mft. |
| VXH164ST | 16 AWG 7 Strands Class B | 3 Conductors | 0.045" | 0.377" | 90 lbs./Mft. |

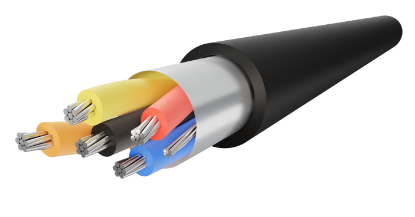

| VXH165ST | 16 AWG 7 Strands Class B | 5 Conductors | 0.045" | 0.411" | 107 lbs./Mft. |

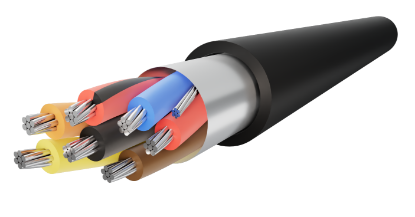

| VXH167ST | 16 AWG 7 Strands Class B | 7 Conductor | 0.045" | 0.446" | 137 lbs./Mft. |

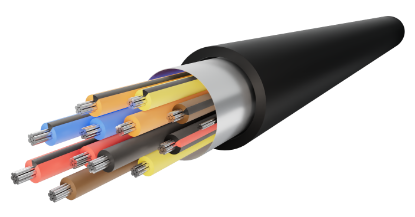

| VXH1612ST | 16 AWG 7 Strands Class B | 12 Conductors | 0.060" | 0.609" | 236 lbs./Mft. |

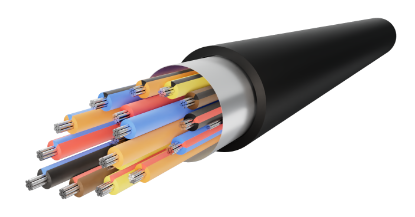

| VXH1619ST | 16 AWG 7 Strands Class B | 19 Conductors | 0.060" | 0.700" | 342 lbs./Mft. |

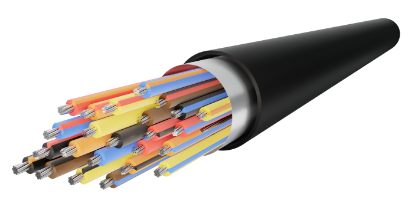

| VXH1625ST | 16 AWG 7 Strands Class B | 25 Conductors | 0.060" | 0.796" | 432 lbs./Mft. |
| VXH1637ST | 16 AWG 7 Strands Class B | 37 Conductors | 0.080" | 0.988" | 662 lbs./Mft. |
| VXH162ST | 16 AWG 7 Strands Class B | 2 Conductors | 0.045 | 0.329" | 60 lbs./Mft. |
