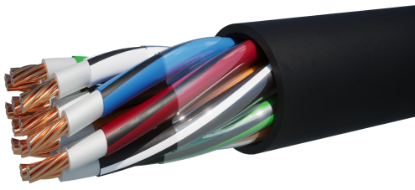

12 AWG 3 conductor 7 strand bare copper with PE and PVC insulation, unshielded with an overall PVC jacket 600V cable, approved for use in circuits rated 600V, 75°C.
12 AWG 4 conductor 7 strand bare copper with PE and PVC insulation, unshielded with an overall PVC jacket 600V cable, approved for use in circuits rated 600V, 75°C.
12 AWG 5 conductor 7 strand bare copper with PE and PVC insulation, unshielded with an overall PVC jacket 600V cable, approved for use in circuits rated 600V, 75°C.
12 AWG 6 conductor 7 strand bare copper with PE and PVC insulation, unshielded with an overall PVC jacket 600V cable, approved for use in circuits rated 600V, 75°C.
12 AWG 7 conductor 7 strand bare copper with PE and PVC insulation, unshielded with an overall PVC jacket 600V cable, approved for use in circuits rated 600V, 75°C.
12 AWG 9 conductor 7 strand bare copper with PE and PVC insulation, unshielded with an overall PVC jacket 600V cable, approved for use in circuits rated 600V, 75°C.
14 AWG 10 conductor 7 strand bare copper with PE and PVC insulation, unshielded with an overall PVC jacket 600V cable, approved for use in circuits rated 600V, 75°C.
14 AWG 12 conductor 7 strand bare copper with PE and PVC insulation, unshielded with an overall PVC jacket 600V cable, approved for use in circuits rated 600V, 75°C.
14 AWG 2 conductor 7 strand bare copper with PE and PVC insulation, unshielded with an overall PVC jacket 600V cable, approved for use in circuits rated 600V, 75°C.
14 AWG 3 conductor 7 strand bare copper with PE and PVC insulation, unshielded with an overall PVC jacket 600V cable, approved for use in circuits rated 600V, 75°C.
14 AWG 4 conductor 7 strand bare copper with PE and PVC insulation, unshielded with an overall PVC jacket 600V cable, approved for use in circuits rated 600V, 75°C.
14 AWG 5 conductor 7 strand bare copper with PE and PVC insulation, unshielded with an overall PVC jacket 600V cable, approved for use in circuits rated 600V, 75°C.
| Product | AWG Size & Stranding | Conductor Count | Jacket Thickness | Cable OD | Cable Weight |
|---|---|---|---|---|---|
| TPT123 | 12 AWG 7 Strands Class B | 3 Conductors | 0.045” | 0.443” | 126 lbs./Mft. |
| TPT124 | 12 AWG 7 Strands Class B | 4 Conductors | 0.045” | 0.453” | 148 lbs./Mft. |
| TPT125 | 12 AWG 7 Strands Class B | 5 Conductors | 0.060” | 0.573” | 210 lbs./Mft. |
| TPT126 | 12 AWG 7 Strands Class B | 6 Conductors | 0.060” | 0.583” | 235 lbs./Mft. |
| TPT127 | 12 AWG 7 Strands Class B | 7 Conductors | 0.060” | 0.583” | 257 lbs./Mft. |
| TPT129 | 12 AWG 7 Strands Class B | 9 Conductors | 0.060” | 0.686” | 326 lbs./Mft. |
| TPT1410 | 14 AWG 7 Strands Class B | 10 Conductors | 0.060” | 0.655” | 263 lbs./Mft. |
| TPT1412 | 14 AWG 7 Strands Class B | 12 Conductors | 0.060” | 0.679” | 303 lbs./Mft. |
| TPT142 | 14 AWG 7 Strands Class B | 2 Conductors | 0.045” | 0.356” | 67 lbs./Mft. |
| TPT143 | 14 AWG 7 Strands Class B | 3 Conductors | 0.045” | 0.380” | 92 lbs./Mft. |
| TPT144 | 14 AWG 7 Strands Class B | 4 Conductors | 0.045” | 0.413” | 110 lbs./Mft. |
| TPT145 | 14 AWG 7 Strands Class B | 5 Conductors | 0.045” | 0.452” | 132 lbs./Mft. |
