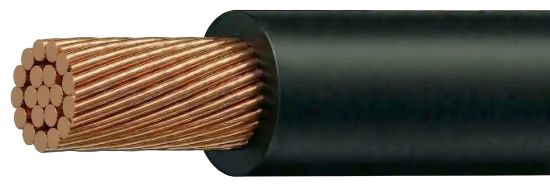

RHW-2/2/01/2KV-07

Conductor

Conductor Count:

1

AWG Size:

2/0 AWG

Number of Strands:

19

Stranding Class:

Class B

Material:

Annealed Bare Copper

Insulation

Material:

Cross-linked Polyethylene

Wall Thickness:

0.090

Diameter:

0.585

Color Code:

PURPLE

Weight:

521

Jacket

Min. Static Bend Radius:

4.095

Markings

Footage Markers:

Yes

Type:

Cable shall be permanently identified via surface inkjet print

Legend:

LAKE CABLE E214472 2/0 AWG OR KCMIL (UL) RHW-2/VW-1 2KV 90C DRY/WET FOR CT USE PR II GR II “ROHS COMPLIANT” MADE IN USA

Approvals

Approvals List:

• UL listed as type RHW-2 per UL Standard 44 for Thermoset-Insulated Wires

• UL approved for Oil and Gasoline resistance

• UL approved for CT use applications for 1/0 and larger

• Due to the frequent updates to regulations, EU REACH SVHCs and ROHS please contact Lake Cable for the most up to date compliance statement.

• WARNING: This product may contain chemicals that pose a risk of cancer from exposure to Vinyl Chloride and reproductive harm from exposure to Di-isodecyl Phthalate (DIDP). Visit: www.P65Warnings.ca.gov
