S16C4ECMP-04

18/4C+22/3PR OS+22/2C+22/4 CMP YELLOW

SKU: S16C4ECMP-04

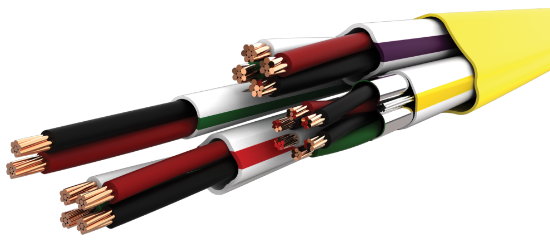

A 4 ELEMENT 16C PLENUM RATED COMPOSITE CABLE

ELEMENT 1: 18 AWG 4C 7 STRAND BARE COPPER WIRE WITH .007" SGPVC INSULATION, NON-SHIELDED, OVERALL .015" NATURAL WITH A CO-EXTRUDED PURPLE STRIPE SGPVC JACKET
CC: BLACK, RED, WHITE, GREEN
PRINT: LOCK POWER/PIR DOOR/LOCATION A B C D E F / 0 1 2 3 4 5 6 7 8 9 10 11 12

ELEMENT 2: 22 AWG 3 PAIR 7 STRAND BARE COPPER WIRE WITH .007" SGPVC INSULATION, OVERALL ALUMINUM MYLAR TAPE SHIELD WITH A 24 AWG 7 STRAND TINNED COPPER DRAIN WIRE, OVERALL .015" NATURAL WITH A CO-EXTRUDED YELLOW STRIPE SGPVC JACKET
CC: BLACK & RED, GREEN & WHITE, ORANGE & BROWN
PRINT: CARD READER DOOR/LOCATION A B C D E F / 0 1 2 3 4 5 6 7 8 9 10 11 12

ELEMENT 3: 22 AWG 2C 7 STRAND BARE COPPER WIRE WITH .007" SGPVC INSULATION, NON-SHIELDED, OVERALL .015" NATURAL WITH A CO-EXTRUDED GREEN STRIPE SGPVC JACKET
CC: BLACK & RED
PRINT: DOOR CONTACT DOOR/LOCATION A B C D E F / 0 1 2 3 4 5 6 7 8 9 10 11 12

ELEMENT 4: 22 AWG 4C 7 STRAND BARE COPPER WIRE WITH .007" SGPVC INSULATION, NON-SHIELDED, OVERALL .015" NATURAL WITH A CO-EXTRUDED RED STRIPE SGPVC JACKET
CC: BLACK, RED, WHITE, GREEN
PRINT: REX/SPARE DOOR/LOCATION A B C D E F / 0 1 2 3 4 5 6 7 8 9 10 11 12

THE FOUR INDIVIDUALLY JACKETED ELEMENTS ARE CABLED WITH AN OVERALL .023" YELLOW SPECIAL SGPVC JACKET
PRINT: LAKE CABLE PLENUM ACCESS CONTROL CABLE A B C D E F / 0 1 2 3 4 5 6 7 8 9 10 11 12 (UL) CL3P OR C(UL)US CMP FT-6 "ROHS COMPLIANT" MADE IN USA
RIPCORD: YES ON ALL ELEMENTS AND OVERALL
FOOTAGE MARKERS: OVERALL CABLE ONLY
INNER JACKETED ELEMENTS PRINTED WITH (UL) CL3P OR C(UL)US CMP FT-6 "ROHS COMPLIANT" MADE IN USA

This spec is for informational purposes and subject to change. This spec may not be suitable for submission. Contact Lake Cable for non-watermark spec sheet.

Products specifications

Attribute name	Attribute value
Elements
Element 1	18 AWG 4C Unshielded Conductor AWG Size & Stranding: 18 AWG 7 Strands Class B Material: Annealed Bare Copper Conductor Count: 4 Conductors Insulation Material: Plenum Rated Polyvinylchloride Wall Thickness: 0.007” Color Code: Black, Red, White, Green Assembly Nominal Lay Length: 2.50” LHL (4.8 Tw/Ft) Jacket Material: Plenum Rated Polyvinylchloride Wall thickness: 0.015” Diameter: 0.172” Color: Natural/Purple Ripcord: Yes 5. Markings Type: Cable shall be permanently identified via surface inkjet print Legend: *LOCK POWER/PIR* DOOR/LOCATION A B C D E F / 0 1 2 3 4 5 6 7 8 9 10 11 12 E171202 18AWG 4C 75°C (UL) CL3P OR C(UL)US CMP FT-6 "ROHS COMPLIANT" MADE IN USA Footage Markers: No
Element 3	22 AWG 3PR Shielded Conductor AWG Size & Stranding: 22 AWG 7 Strands Class B Material: Annealed Bare Copper Conductor Count: 3 Pairs Insulation Material: Plenum Rated Polyvinylchloride Wall Thickness: 0.007” Color code: Black x Red, Green x White, Orange x Brown Assembly Pair Lay Length: 2.00” LHL (6.0 Tw/Ft) Cable Lay Length: 2.50” LHL (4.8 Tw/Ft) Cable Shield: Aluminum/Mylar – 100% Coverage Cable Drain Wire: 24 AWG 7 Strand Tinned copper Jacket Material: Plenum Rated Polyvinylchloride Wall thickness: 0.015” Diameter: 0.183” Color: Natural/Yellow Ripcord: Yes Markings Type: Cable shall be permanently identified via surface inkjet print Legend: *CARD READER* DOOR/LOCATION A B C D E F / 0 1 2 3 4 5 6 7 8 9 10 11 12 E171202 22AWG 3PR SHIELDED 75°C (UL) CL3P OR C(UL)US CMP FT-6 "ROHS COMPLIANT" MADE IN USA Footage Markers: No
Element 4	22 AWG 2C UNSHIELDED Conductor AWG Size & Stranding: 22 AWG 7 Strands Class B Material: Annealed Bare Copper Conductor Count: 2 Conductors Insulation Material: Plenum Rated Polyvinylchloride Wall Thickness: 0.007” Color code: Black, Red Assembly Nominal Lay Length: 1.25” LHL (9.6 tw/ft) Jacket Material: Plenum Rated Polyvinylchloride Wall thickness: 0.015” Diameter: 0.114” Color: Natural/Green Ripcord: Yes Markings Type: Cable shall be permanently identified via surface inkjet print Legend: *DOOR CONTACT* DOOR/LOCATION A B C D E F / 0 1 2 3 4 5 6 7 8 9 10 11 12 E171202 22AWG 2C 75°C (UL) CL3P OR C(UL)US CMP FT-6 "ROHS COMPLIANT" MADE IN USA Footage Markers: No
Element 2	22 AWG 4C Unshielded Conductor AWG Size & Stranding: 22 AWG 7 Strands Class B Material: Annealed Bare Copper Conductor Count: 4 Conductors Insulation Material: Plenum Rated Polyvinylchloride Wall Thickness: 0.007” Color code: Black, Red, White, Green Assembly Nominal Lay Length: 1.75” LHL (6.86 tw/ft) Jacket Material: Plenum Rated Polyvinylchloride Wall thickness: 0.015” Diameter: 0.131” Color: Natural/Red Ripcord: Yes Markings Type: Cable shall be permanently identified via surface inkjet print Legend: *REX/SPARE* DOOR/LOCATION A B C D E F / 0 1 2 3 4 5 6 7 8 9 10 11 12 E171202 22AWG 4C 75°C (UL) CL3P OR C(UL)US CMP FT-6 "ROHS COMPLIANT" MADE IN USA Footage Markers: No
Overall Assembly
Nominal Lay Length (All Elements)	8.00” LHL (1.5 Tw/Ft)
Jacket	Material: Plenum Rated Polyvinylchloride Wall thickness: 0.023” Diameter: 0.386” ± 0.031” Color: Yellow Ripcord: Yes Weight: 97 lbs./Mft.
Markings	Type: Cable shall be permanently identified via surface inkjet print Legend: LAKE CABLE PLENUM ACCESS CONTROL CABLE A B C D E F / 0 1 2 3 4 5 6 7 8 9 10 11 12 E171202 18AWG 4C + 22AWG 3PR SHLD + 22AWG 4C + 22AWG 2C 75°C (UL) CL3P OR C(UL)US CMP FT-6 "ROHS COMPLIANT" MADE IN USA Footage Markers: Yes
Standards	• Cable suitable for installation under NEC (NFPA 70) articles 800, 725 and 760 guidelines • Cable suitable for installation in Canada under Section 60 of CEC, Part I 24.3. C(UL)US listed as CMP per UL standard 444 and per CSA C22.2 No. 214-17 • UL listed as CL3P per UL standard 13 or FPLP per UL standard 1424 24.5. Cable meets NFPA 262 (Steiner tunnel) flame test • Cable meets RoHS 2002/95/EC Directive, RoHS 2 2011/65/EU Directive, RoHS 3 2015/863/EU Directive • Cable is REACH compliant per Regulation (EC) No 1907/2006 (240) Updated January 23, 2024 • Operating Voltage: 300V RMS • Made in the USA • WARNING: This product may contain chemicals, such as Vinyl Chloride, known to the state of California to cause cancer. For more information, go to www.P65Warnings.ca.gov. Wash hands after handling

Copper Price 05/02/2025 4.6635
