S16C4EPLTC-04

18/4C UNSHIELDED + 22/3PR SHIELDED + 22/4C UNSHIELDED + 22/2C UNSHIELDED

SKU: S16C4EPLTC-04

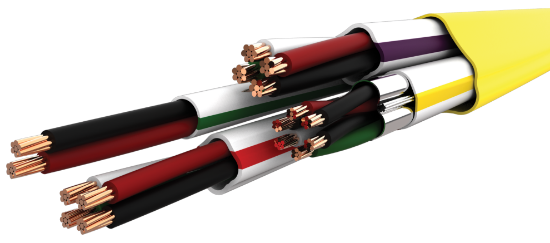

A 4 ELEMENT 16C COMPOSITE CABLE

	18 AWG 4C Unshielded	22 AWG 3PR Shielded	22 AWG 4C Unshielded	22 AWG 2C Unshielded
Conductors
AWG	18 AWG	22 AWG	22 AWG	22 AWG
Conductor Count	4 Conductors	3 Pairs	4 Conductors	2 Conductors
Strand Count	7 Strand	7 Strand	7 Strand	7 Strand
Conductor Material	Annealed Bare Copper	Annealed Bare Copper	Annealed Bare Copper	Annealed Bare Copper
Insulation
Material	PVC	PVC	PVC	PVC
Wall Thickness	0.013"	0.013"	0.013"	0.013"
Diameter	0.071" +/- 0.002"	0.071" +/- 0.002"	0.054" +/- 0.002"	0.054" +/- 0.002"
Color Code	Black, Red, White, Green	Black/Red, Green/White, Brown/Orange	Black, Red, White, Green	Black, Red
Assembly
Shield	None	Aluminum/Mylar Tape - 100% Coverage (Foil Out)	None	None
Lay Length	3.00" LHL (4.00 Tw/Ft)	—	3.00" LHL (4.00 Tw/Ft)	3.00" LHL (4.00 Tw/Ft)
Pair Lay Length	—	2.50" LHL (4.8 Tw/Ft)	—	—
Cable Lay Length	—	4.00" LHL (3.00 Tw/Ft)	—	—
Drain Wire	—	24 AWG 7 Strands Tinned Copper	—	—
Jacket
Color / Material	Purple PVC	Yellow PVC	Red PVC	Green PVC
Wall Thickness	0.015"	0.015"	0.015"	0.015"
Diameter	0.201" +/- 0.015"	0.232" +/- 0.015"	0.160" +/- 0.012"	0.138" +/- 0.010"
Ripcord	Yes	Yes	Yes	Yes

Products specifications

Overall Assembly

Nominal Lay Length (All Elements):

8.00" LHL (1.05 Tw/Ft)

Jacket

Material:

Polyvinylchloride (PVC)

Wall Thickness:

0.060"

Diameter:

0.584" +/- 0.040"

Color:

Yellow

Ripcord:

Yes

Weight:

139 Lbs/Mft

Markings

Type:

Cable shall be permanently identified via surface inkjet print

Footage Markers:

Yes

Legend:

LAKE CABLE E171202 18AWG 4C + 22AWG 3PR SHLD + 22AWG 4C + 22AWG 2C 105C (UL) PLTC DIR BUR SUN RES FT4 "WET LOCATIONS" "ROHS COMPLIANT" MADE IN USA

Approvals

Approvals List:

• Cable suitable for installation under NEC (NFPA 70) article 725 guidelines
• UL listed as type PLTC per UL standard 13
• UL approved for Sunlight Resistance and Direct Burial applications
• Operating Temperature: -40C to 105C
• Maximum Operating Voltage: 300V RMS
• Made in the USA
• Due to the frequent updates to regulations, EU REACH SVHCs and ROHS please contact Lake Cable for the most up to date compliance statement.
• WARNING: This product may contain chemicals that pose a risk of cancer from exposure to Vinyl Chloride and reproductive harm from exposure to Di-isodecyl Phthalate (DIDP). Visit: www.P65Warnings.ca.gov

This spec is for informational purposes and subject to change. This spec may not be suitable for submission. Contact Lake Cable for non-watermark spec sheet.
