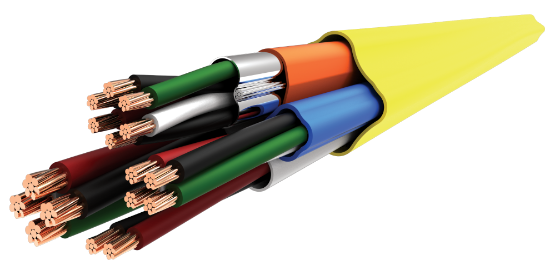

18/4C-SH+22/3PRS+22/2C-SH+22/4C-SH CMP YELLOW
SKU: S801510-04


A 16C 4 ELEMENT PLENUM RATED ACCESS CONTROL CABLE.

ELEMENT 1: 18 AWG 4C 7 STRAND BARE COPPER WIRE WITH .007" SGPVC INSULATION, OVERALL ALUMINUM MYLAR TAPE SHIELD WITH A 24 AWG 7 STRAND TINNED COPPER DRAIN WIRE, OVERALL .015" SGPVC JACKET NATURAL WITH A CO-EXTRUDED PURPLE STRIPE
CC: BLACK, RED, WHITE, GREEN
PRINT: LOCK POWER / PIR DOOR/LOCATION A B C D E F / 0 1 2 3 4 5 6 7 8 9 10 11 12

ELEMENT 2: 22 AWG 3 PAIR 7 STRAND BARE COPPER WIRE WITH .007" SGPVC INSULATION, OVERALL ALUMINUM MYLAR TAPE SHIELD WITH A 24 AWG 7 STRAND TINNED COPPER DRAIN WIRE, OVERALL .015" SGPVC JACKET NATURAL WITH A CO-EXTRUDED YELLOW STRIPE
CC: BLACK & RED, WHITE & GREEN, ORANGE & BROWN
PRINT: CARD READER DOOR/LOCATION / A B C D E F / 0 1 2 3 4 5 6 7 8 9 10 11 12

ELEMENT 3: 22 AWG 2C 7 STRAND BARE COPPER WIRE WITH .007" SGPVC INSULATION, OVERALL ALUMINUM MYLAR TAPE SHIELD WITH A 24 AWG 7 STRAND TINNED COPPER DRAIN WIRE, OVERALL .015" SGPVC JACKET NATURAL WITH A CO-EXTRUDED GREEN STRIPE
CC: BLACK & RED
PRINT: DOOR CONTACT DOOR/LOCATION A B C D E F / 0 1 2 3 4 5 6 7 8 9 10 11 12

ELEMENT 4: 22 AWG 4C 7 STRAND BARE COPPER WIRE WITH .007" SGPVC INSULATION, OVERALL ALUMINUM MYLAR TAPE SHIELD WITH A 24 AWG 7 STRAND TINNED COPPER DRAIN WIRE, OVERALL .015" SGPVC JACKET NATURAL WITH A CO-EXTRUDED RED STRIPE
CC: BLACK, RED, WHITE, GREEN.
PRINT: REX/SPARE DOOR/LOCATION / A B C D E F / 0 1 2 3 4 5 6 7 8 9 10 11 12

THE 4 ELEMENTS ARE CABLED WITH AN OVERALL .017" YELLOW PVDF JACKET
(UL) CL3P OR CMP C(UL)US 75'C FT-6 "ROHS COMPLIANT" MADE IN USA
PRINT: LAKE CABLE PLENUM ACCESS CONTROL CABLE A B C D E 0 1 2 3 4 5 6 7 8 9
NOTE: ALL INNER ELEMENTS HAVE STANDARD UL PRINT: (UL) CL3P OR CMP C(UL)US 75'C FT-6 "ROHS COMPLIANT" MADE IN USA
FOOTAGE MARKERS: YES, OVERALL CABLE ONLY.
RIPCORD: YES, INNER AND OVERALL JACKET.

This spec is for informational purposes and subject to change. This spec may not be suitable for submission. Contact Lake Cable for non-watermark spec sheet.
Products specifications
Attribute nameAttribute value
Elements
Element 1

18 AWG 4C Shielded

Conductor
AWG Size & Stranding: 18 AWG 7 Strands Class B
Material: Annealed Bare Copper
Conductor Count: 4 Conductors

Insulation
Material: Plenum Rated Polyvinylchloride
Wall Thickness: 0.007”
Conductor Diameter: 0.059” ± .002”
Color Code: Black, Red, White, Green

Assembly
Nominal Lay Length: 3.00” LHL (4.0 tw/ft)
Shield: Aluminum/Mylar Tape – 100% Coverage
Drain Wire: 24 AWG 7 strands tinned copper

Jacket
Material: Tube Extruded Plenum Rated Polyvinylchloride
Wall thickness: 0.015”
Diameter: 0.174” ± .017”
Color: Natural/Violet
Ripcord: Yes
Weight: 32 Lbs/Mft

Markings
Type: Cable permanently identified via surface inkjet print
Legend: ***LOCK POWER/PIR***DOOR/LOCATION A B C D E F / 0 1 2 3 4 5 6 7 8 9 10 11 12 E171202 18AWG 4C 75C (UL) CL3P OR C(UL)US CMP FT6 "ROHS COMPLIANT" MADE IN USA
Footage Markers: No

Element 3

22 AWG 3PR Shielded

Conductor
AWG Size & Stranding: 22 AWG 7 Strands Class B
Material: Annealed Bare Copper
Conductor Count: 3 Pairs

Insulation
Material: Plenum Rated Polyvinylchloride
Wall Thickness: 0.007”
Conductor Diameter: 0.042” ± .002”

Assembly
Pair Lay Length: 2.50” LHL (4.8 tw/ft)
Cable Lay Length: 3.50” LHL (3.43 tw/ft)
Cable Shield: Aluminum/Mylar Tape – 100% Coverage
Cable Drain Wire: 24 AWG 7 Strands Tinned copper

Jacket
Material: Tube Extruded Plenum Rated Polyvinylchloride
Wall thickness: 0.015”
Diameter: 0.181” ± .015”
Color: Natural/Yellow
Ripcord: Yes
Weight: 24 Lbs/Mft

Markings
Type: Cable permanently identified via surface inkjet print
Legend: ***CARD READER***DOOR/LOCATION / A B C D E F / 0 1 2 3 4 5 6 7 8 9 10 11 12 E171202 22AWG 3PR SHIELDED 75C (UL) CL3P OR C(UL)US CMP FT6 "ROHS COMPLIANT" MADE IN USA
Footage Markers: No

Element 4

22 AWG 2C Shielded

Conductor
AWG Size & Stranding: 22 AWG 7 Strands Class B
Material: Annealed Bare Copper
Conductor Count: 2 Conductors

Insulation
Material: Plenum Rated Polyvinylchloride
Wall Thickness: 0.007”
Conductor Diameter: 0.042 ± .002”
Color code: Black, Red

Assembly
Nominal Lay Length: 2.50” LHL (4.8 tw/ft)
Shield: Aluminum/Mylar Tape – 100% Coverage
Drain Wire: 24 AWG 7 Strands Tinned Copper

Jacket
Material: Tube Extruded Plenum Rated Polyvinylchloride
Wall thickness: 0.015”
Diameter: 0.116” ± .010”
Color: Natural/Green
Ripcord: Yes
Weight: 11 Lbs/Mft

Markings
Type: Cable permanently identified via surface inkjet print
Legend: ***DOOR CONTACT***DOOR/LOCATION A B C D E F / 0 1 2 3 4 5 6 7 8 9 10 11 12 E171202 22AWG 2C 75C SHIELDED (UL) CL3P OR C(UL)US CMP FT6 "ROHS COMPLIANT" MADE IN USA
Footage Markers: No

Element 2

22 AWG 4C Shielded

Conductor
AWG Size & Stranding: 22 AWG 7 Strands Class B
Material: Annealed Bare Copper
Conductor Count: 4 Conductors

Insulation
Material: Plenum Rated Polyvinylchloride
Wall Thickness: 0.007”
Conductor Diameter: 0.042” ± .002”
Color code: Black, White, Red, Green

Assembly
Nominal Lay Length: 3.00” LHL (4.0 tw/ft)
Shield: Aluminum/Mylar Tape – 100% Coverage
Drain Wire: 24 AWG 7 Strands Tinned Copper

Jacket
Material: Tube Extruded Plenum Rated Polyvinylchloride
Wall thickness: 0.015”
Diameter: 0.133” ± .013”
Color: Natural/Red
Ripcord: Yes
Weight: 17 Lbs/Mft

Markings
Type: Cable permanently identified via surface inkjet print
Legend: ***REX/SPARE***DOOR/LOCATION / A B C D E F / 0 1 2 3 4 5 6 7 8 9 10 11 12 E171202 22AWG 4C 75C (UL) CL3P OR C(UL)US CMP FT6 "ROHS COMPLIANT" MADE IN USA
Footage Markers: No

Overall Assembly
Nominal Lay Length (All Elements)

Nominal Lay Length: 8.00” LHL (1.5 tw/ft)

Jacket

Material: Tube Extruded Polyvinylidene Fluoride
Wall thickness: 0.017”
Diameter: 0.401” ± 0.032”
Color: Yellow
Ripcord: Yes
Weight: 99 Lbs/Mft

Markings

Type: Cable permanently identified via surface inkjet print
Legend: LAKE CABLE S801510-04 PLENUM ACCESS CONTROL CABLE A B C D E 0 1 2 3 4 5 6 7 8 9 E171202 18AWG 4C SHLD + 22AWG 3PR SHLD + 22AWG 4C SHLD + 22AWG 2C SHLD 75C (UL) CL3P OR C(UL)US CMP FT6 "ROHS COMPLIANT" MADE IN USA
Footage Markers: Yes (Ascending/Descending)

Approvals
Approvals List

• Cable suitable for installation under NEC (NFPA 70) articles 800 and 725 guidelines
• Cable suitable for installation in Canada under Section 60 of CEC, Part I
• C(UL)US listed as CMP per UL standard 444 and per CSA C22.2 No. 214-17
• UL listed as CL3P per UL standard 13
• Cable meets NFPA 262 (Steiner tunnel) flame test
• Cable meets RoHS 2002/95/EC Directive, RoHS 2 2011/65/EU Directive, RoHS 3 2015/863/EU Directive
• Cable is REACH compliant per Regulation (EC) No 1907/2006 (224) Updated June 10, 2022
• Made in the USA
• WARNING: This product may contain chemicals, such as Vinyl Chloride, known to the state of California to cause cancer. For more information, go to www.P65Warnings.ca.gov. Wash hands after handling
