S801512CMR-05

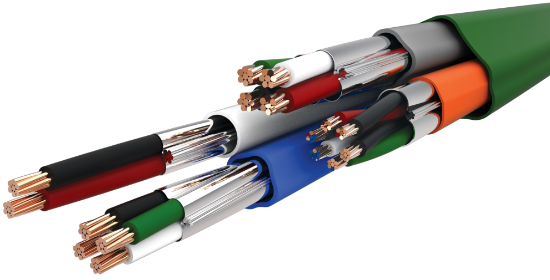

A 4 element individually jacketed access control composite cable.
SKU: S801512CMR-05


• 18 AWG 4 Conductor Shielded
• 22 AWG 3 Pair Shielded
• 22 AWG 2 Conductor Shielded
• 22 AWG 4 Conductor Shielded


• Made in the USA
• UL listed as type CL3R per UL standard 13 and as type CMR c(UL)us 75°C FT-4 per UL standard 444
• All materials used in the manufacturing of this cable are RoHS II & REACH compliant

This spec is for informational purposes and subject to change. This spec may not be suitable for submission. Contact Lake Cable for non-watermark spec sheet.
Products specifications
Attribute nameAttribute value
Conductor - Element 1 18 AWG 4C Shielded
AWG Size & Stranding18 AWG 7 Strands Class B
MaterialAnnealed Bare Copper
Conductor Count4 Conductors
Insulation - Element 1 18 AWG 4C Shielded
MaterialPolyvinylchloride
Wall Thickness0.007”
Color CodeBlack, Red, White, Green
Assembly - Element 1 18 AWG 4C Shielded
Nominal Lay Length3.00” LHL (4.00 Tw/Ft)
ShieldAluminum/Mylar – 100% Coverage
Drain Wire24 AWG 7 strand tinned copper
Jacket - Element 1 18 AWG 4C Shielded
MaterialPolyvinylchloride
Wall Thickness0.015”
Diameter0.175”
ColorGray
RipcordYes
Weight34 lbs./Mft.
Marking - Element 1 18 AWG 4C Shielded
TypeCable permanently identified via surface inkjet print
Legend*** LOCK POWER/PIR *** DOOR/LOCATION A B C D E F / 0 1 2 3 4 5 6 7 8 9 10 11 12 E171197 18AWG 4C (UL) CMR C(UL)US OR (UL) CL3R 75’C SUN RES FT-4 “ROHS II” MADE IN USA
Footage MarkersN/A
Conductor - Element 2 22 AWG 3PR Shielded
AWG Size & Stranding22 AWG 7 Strands Class B
MaterialAnnealed Bare Copper
Conductor Count3 Pairs
Insulation - Element 2 22 AWG 3PR Shielded
MaterialPolyvinylchloride
Wall Thickness0.007”
Color CodeBlack x Red, Green x White, Brown x Orange
Assembly - Element 2 22 AWG 3PR Shielded
Pair Lay Length2.00” LHL (6.00 Tw/Ft)
Cable Lay Length2.50” LHL (4.8 Tw/Ft), 2.50” LHL (4.8 Tw/Ft)
Cable ShieldAluminum/Mylar – 100% Coverage
Cable Drain Wire24 AWG 7 Strand Tinned Copper
Jacket - Element 2 22 AWG 3PR Shielded
MaterialPolyvinylchloride
Wall Thickness0.015”
Diameter0.183”
ColorOrange
RipcordYes
Weight25 lbs./Mft.
Markings - Element 2 22 AWG 3PR Shielded
TypeCable permanently identified via surface inkjet print
Legend*** CARD READER *** DOOR/LOCATION A B C D E F/ 0 1 2 3 4 5 6 7 8 9 10 11 12 E171197 22AWG 3PR (UL) CMR C(UL)US OR (UL) CL3R 75’C SUN RES FT-4 “ROHS II” MADE IN USA
Footage MarkersN/A
Conductor - Element 3 22 AWG 2C Shielded
AWG Size & Stranding22 AWG 7 Strands Class B
MaterialAnnealed Bare Copper
Conductor Count2 Conductors
Insulation - Element 3 22 AWG 2C Shielded
MaterialPolyvinylchloride
Wall Thickness0.007”
Color CodeBlack, Red
Assembly - Element 3 22 AWG 2C Shielded
Nominal Lay Length2.00” LHL (6.00 tw/ft)
ShieldAluminum/Mylar – 100% Coverage
Drain Wire24 AWG 7 Strand Tinned Copper
Jacket - Element 3 22 AWG 2C Shielded
MaterialPolyvinylchloride
Wall Thickness0.015”
Diameter0.117”
ColorWhite
RipcordYes
Weight11 lbs./Mft.
Markings - Element 3 22 AWG 2C Shielded
TypeCable permanently identified via surface inkjet print
Legend*** DOOR CONTACT *** DOOR/LOCATION A B C D E F / 0 1 2 3 4 5 6 7 8 9 10 11 12 E171197 22AWG 2C (UL) CMR C(UL)US OR (UL) CL3R 75’C SUN RES FT-4 “ROHS II” MADE IN USA
Footage MarkersN/A
Conductor - Element 4 22 AWG 4C Shielded
AWG Size & Stranding22 AWG 7 Strands Class B
MaterialAnnealed Bare Copper
Conductor Count4 Conductors
Insulation - Element 4 22 AWG 4C Shielded
MaterialPolyvinylchloride
Wall Thickness0.007”
Color CodeBlack, Red, White, Green
Assembly - Element 4 22 AWG 4C Shielded
Nominal Lay Length3.00” LHL (4.00 tw/ft)
ShieldAluminum/Mylar – 100% Coverage
Drain Wire24 AWG 7 Strand Tinned Copper
Jacket - Element 4 22 AWG 4C Shielded
MaterialPolyvinylchloride
Wall Thickness0.015”
Diameter0.147”
ColorBlue
RipcordYes
Weight17 lbs./Mft.
Markings - Element 4 22 AWG 4C Shielded
TypeCable permanently identified via surface inkjet print
Legend*** REX/SPARE *** DOOR/LOCATION A B C D E F / 0 1 2 3 4 5 6 7 8 9 10 11 12 E171197 22AWG 4C (UL) CMR C(UL)US OR (UL) CL3R 75’C SUN RES FT-4 “ROHS II” MADE IN USA
Footage MarkersN/A
Assembly - Overall Cable
Nominal Lay Length5.75” LHL (2.09 Tw/Ft)
ShieldN/A
Drain WireN/A
Jacket - Overall Cable
MaterialPolyvinylchloride
Wall Thickness0.018”
Diameter0.416”
ColorGreen
RipcordYes
Weight107 lbs./Mft.
Markings - Overall Cable
TypeCable permanently identified via surface inkjet print
LegendLAKE CABLE ACCESS CONTROL CABLE A B C D E F / 0 1 2 3 4 5 6 7 8 9 10 11 12 E171197 18AWG 4C SHLD + 22AWG 3PR SHLD + 22AWG 4C SHLD + 22AWG 2C SHLD (UL) CMR C(UL)US OR (UL) CL3R 75’C SUN RES FT-4 “ROHS II” MADE IN USA
Footage MarkersYes
Standards - Overall Cable
Maximum Operating Voltage300V RMS
