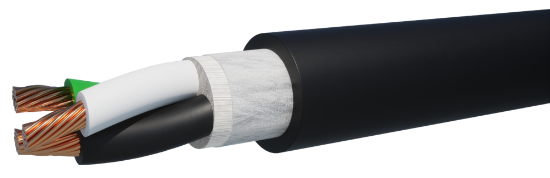

SEOOW103

Conductor

AWG Size & Stranding:

10 AWG 105 Strands Class K

Material:

Annealed Bare Copper

Conductor Count:

3 Conductors

Insulation

Material:

Thermoplastic Elastomer (TPE)

Wall Thickness:

0.047”

Color Code:

Black, White, Green

Cable Assembly

Cable Lay Length:

4.25 LHL (2.82 tw/ft) Nominal

Filler:

Non-Hygroscopic Polypropylene - as required for a circular cross-section

Cable Binder:

Non-Woven Polyester – 100% Coverage

Jacket

Material:

Pressure Extruded Thermoplastic Elastomer (TPE)

Wall Thickness:

0.100”

Diameter:

0.660” + 0.030” / - 0.010”

Color:

Black

Ripcord:

No

Cold Bend Rating:

-50°C

Weight:

276 lbs/Mft

Markings

Type:

Cable permanently identified via surface inkjet print

Legend:

LAKE CABLE E206089 10AWG (5.26mm2) 3C C(UL)US SEOOW 105C 600V FT2 WATER RESISTANT SUN RES P-07-KA150018-MSHA “ROHS COMPLIANT” MADE IN USA

Footage Markers:

Yes, Ascending

Approvals

Approvals List:

• Cable is suitable for use in Class I Division 2 hazardous locations
• C(UL)US listed as SEOOW per UL 62/CSA C22.2 No. 49 standard for flexible cords
• C(UL)US approved for Sunlight and Weather Resistant & Water Submersed applications
• Cable meets RoHS 2002/95/EC Directive, RoHS 2 2011/65/EU Directive, RoHS 3 2015/863/EU Directive
• Cable is REACH compliant per Regulation (EC) No 1907/2006 (242) Updated November 7, 2024
• Made in the USA
• WARNING: This product may contain chemicals, such as Vinyl Chloride, known to the state of California to cause birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov. Wash hands after handling.
