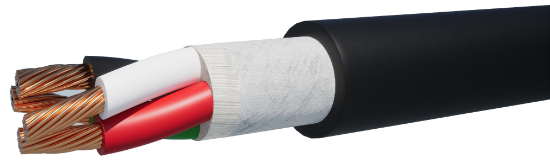

SEOOW104

Conductor

AWG Size & Stranding:

10 AWG 105 Strands Class K

Material:

Annealed Bare Copper

Conductor Count:

4 Conductors

Insulation

Material:

Thermoplastic Elastomer (TPE)

Wall Thickness:

0.047”

Color Code:

Black, White, Red, Green

Cable Assembly

Filler:

Non-Hygroscopic Polypropylene - As Required for a Circular Cross-Section

Cable Binder:

Tissue Wrap – 100% Coverage

Jacket

Material:

Thermoplastic Elastomer (TPE)

Wall Thickness:

0.100”

Diameter:

0.715” + 0.030” / - 0.015”

Color:

Black

Ripcord:

No

Weight:

337 lbs/Mft

Markings

Type:

Cable permanently identified via surface inkjet print

Legend:

LAKE CABLE E206089 10AWG (5.26mm2) 4C C(UL)US SEOOW 105C 600V FT2 WATER RESISTANT SUN RES “ROHS COMPLIANT” MADE IN USA

Footage Markers:

Yes (Ascending)

Approvals

Approvals List:

• Cable is suitable for use in Class I Division 2 hazardous locations
• C(UL)US listed as SEOOW per UL 62/CSA C22.2 No. 49 standard for flexible cords
• C(UL)US approved for Sunlight and Weather Resistant & Water Submersed applications
• Cable meets RoHS 2002/95/EC Directive, RoHS 2 2011/65/EU Directive, RoHS 3 2015/863/EU Directive
• Cable is REACH compliant per Regulation (EC) No 1907/2006 (240) Updated January 23, 2024
• Made in the USA
• WARNING: This product may contain chemicals, such as Vinyl Chloride, known to the state of California to cause cancer. For more information, go to www.P65Warnings.ca.gov. Wash hands after handling.
