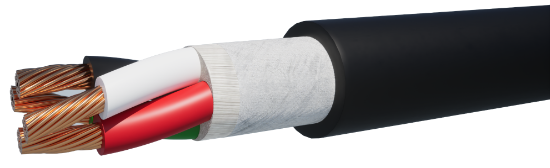

SEOOW124

Conductor

AWG Size & Stranding:

12 AWG 65 Strands Class K

Material:

Annealed Bare Copper

Conductor Count:

4 Conductors

Insulation

Material:

Thermoplastic Elastomer

Wall Thickness:

0.047”

Color Code:

Method 1, Table E-1

Cable Assembly

Filler:

Non-Hygroscopic Polypropylene - as Necessary for a Circular Cross-Section

Cable Binder:

Non-Woven Polyester

Jacket

Material:

Thermoplastic Elastomer

Wall Thickness:

0.100”

Diameter:

0.655” + 0.030” / - 0.015”

Color:

Black

Ripcord:

No

Cold Bend Rating:

-40°C

Weight:

264 lbs/Mft.

Markings

Type:

Cable permanently identified via surface inkjet print

Legend:

LAKE CABLE E206089 12AWG (3.31mm2) 4C C(UL)US SEOOW 105C 600V FT-2 WATER RESISTANT SUN RES P-07-KA150018-MSHA “ROHS COMPLIANT” MADE IN USA

MSHA Stamp:

P-07-KA150018-MSHA

Footage Markers:

Yes

Approvals

Approvals List:

• Cable is suitable for use in Class I Division 2 hazardous locations
• UL listed as Type SEOOW per UL Standard 62 for flexible cords
• UL approved for Sunlight, Oil, and Weather Resistant & Water Submersed applications
• Cable meets (UL) 15851 FT2 flame test
• Cable meets RoHS 2002/95/EC Directive, RoHS 2 2011/65/EU Directive, RoHS 3 2015/863/EU Directive
• Cable is REACH compliant per Regulation (EC) No 1907/2006 (219) Updated July 8, 2021
• Made in the USA
• WARNING: This product may contain chemicals, such as Vinyl Chloride, known to the state of California to cause birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov. Wash hands after handling.
