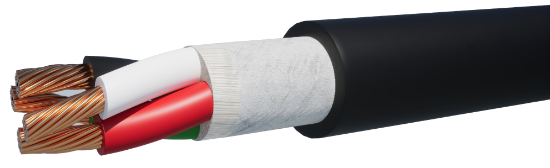

SEOOW124T

Conductor

AWG Size & Stranding:

12 AWG 65 Strands Class K

Material:

Annealed Tinned Copper

Conductor Count:

4 Conductors

Insulation

Material:

Thermoplastic Elastomer (TPE)

Wall Thickness:

0.047”

Color Code:

Method 1, Table E-1

Cable Assembly

Cable Lay Length:

4.00” RHL

Filler:

Non-Hygroscopic Polypropylene - as Necessary for a Circular Cross-Section

Cable Binder:

Non-Woven Polyester

Jacket

Material:

Thermoplastic Elastomer (TPE)

Wall Thickness:

0.100”

Diameter:

0.652” ± 0.010”

Color:

Black

Ripcord:

No

Cold Bend Rating:

-40°C

Weight:

269 lbs/Mft

Markings

Type:

Cable permanently identified via surface inkjet print

Legend:

LAKE CABLE E206089 12AWG (3.31mm2) 4C C(UL)US SEOOW 105C 600V FT2 WATER RESISTANT SUN RES P-07-KA150018-MSHA “ROHS COMPLIANT” MADE IN USA

MSHA Stamp:

P-07-KA150018-MSHA

Footage Markers:

Yes (Ascending)

Approvals

Approvals List:

• Cable is suitable for use in Class I Division 2 hazardous locations
• UL listed as Type SEOOW per UL Standard 62 for flexible cords
• UL approved for Sunlight, Oil, and Weather Resistant & Water Submersed applications
• Cable meets (UL) 15851 FT2 flame test
• Cable meets RoHS 2002/95/EC Directive, RoHS 2 2011/65/EU Directive, RoHS 3 2015/863/EU Directive
• Cable is REACH compliant per Regulation (EC) No 1907/2006 (219) Updated January 15, 2021
• Made in the USA
• WARNING: This product may contain chemicals, such as Vinyl Chloride, known to the state of California to cause cancer. For more information, go to www.P65Warnings.ca.gov. Wash hands after handling.
