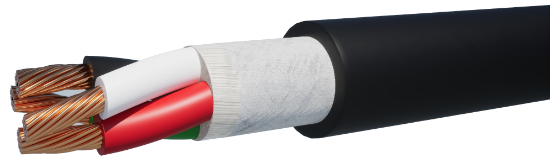

SEOOW84

Conductor

AWG Size & Stranding:

8 AWG 525 Strands Class K

Material:

Annealed Bare Copper

Conductor Count:

4 Conductors

Insulation

Material:

Thermoplastic Elastomer

Wall Thickness:

0.063”

Color Code:

Method 1, Table E-1

Assembly

Fillers:

Non-Hygroscopic Polypropylene - As required for a circular cross-section

Binder:

Non-Woven Tape

Shield:

No

Drain Wire:

No

Jacket

Material:

Thermoplastic Elastomer (TPE)

Wall Thickness:

0.129"

Diameter:

0.940” - 0.15/+ 0.050”

Color:

Black

Ripcord:

Yes

Cold Bend Rating:

-40°C

Weight:

580 lbs/Mft

Markings

Type:

Cable shall be permanently identified via surface inkjet print

Legend:

LAKE CABLE E206089 8AWG (8.37mm2) 4C (UL) SEOOW OR STOOW (TPE) C(UL) 105C 600V FT2 WATER RESISTANT SUN RES P-07-KA150018- MSHA “ROHS COMPLIANT” MADE IN USA

Footage Markers:

Yes

Approvals

Approvals List:

• Cable is suitable for use in Class I Division 2 hazardous locations
• UL listed as Type SEOOW per UL Standard 62 for flexible cords
• UL approved for Sunlight, Oil, and Weather Resistant & Water Submersed applications
• Cable meets RoHS 2002/95/EC Directive, RoHS 2 2011/65/EU Directive & RoHS 3 2015/863/EU Directive
• Cable is REACH compliant per Regulation (EC) No 1907/2006 (241) Updated June 27, 2024
• Made in the USA
• WARNING: This product may contain chemicals, such as Vinyl Chloride, known to the state of California to cause birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov. Wash hands after handling.
