SJEOOW142

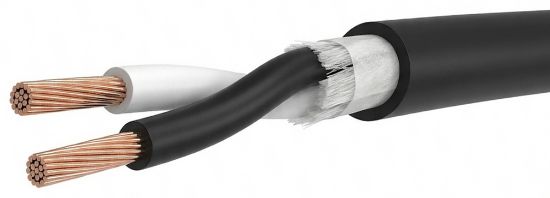

14 AWG 2 conductor 41 strand bare copper with TPE insulation, unshielded with an overall TPE jacket 300V flex cord cable, approved for use in sunlight and weather resistant 105°C applications.

SKU: SJEOOW142

• UL listed as Type SJEOOW per UL Standard 62 for flexible cords and fixture wire
• UL approved for Sunlight, Oil, and Weather Resistant & Water Resistant applications
• All materials used in the manufacture of this cable are RoHS compliant
• Made in the USA

This spec is for informational purposes and subject to change. This spec may not be suitable for submission. Contact Lake Cable for non-watermark spec sheet.

Products specifications

Attribute name	Attribute value
Conductor
AWG Size & Stranding	14 AWG 41 Strands
Material	Annealed Bare Copper
Conductor Count	2 Conductors
Insulation
Material	Thermoplastic Elastomer (TPE)
Wall Thickness	0.032”
Color Code	Black, White
Assembly
Lay Length	2.25” LHL, (5.33 Tw/Ft)
Fillers	Fibrillated polypropylene
Binder	Tissue
Shield	N/A
Drain Wire	N/A
Jacket
Material	Thermoplastic Elastomer (TPE)
Wall Thickness	0.032”
Diameter	0.344”
Color	Black
Ripcord	No
Weight	65 lbs./Mft.
Markings
Type	Cable shall be permanently identified via surface inkjet print
Legend	LAKE CABLE E206089 14AWG (2.08MM2) 2C (UL) SJEOOW OR SJTOOW (TPE) C(UL)US 105’C 300V FT-2 WATER RESISTANT SUN RES P-07-KA090007-1 MSHA “ROHS”
Footage Markers	Yes

Copper Price 4/19/2024 4.4715
