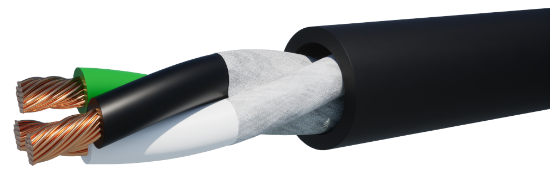

Picture of SJEOOW163
Picture of SJEOOW163
Picture of SJEOOW163
For representation only. Cable constructions may vary from illustration. Please see spec sheet for complete details.

SJEOOW163

Not what you were looking for?
16 AWG 3 conductor 26 strand bare copper with TPE insulation, unshielded with an overall TPE jacket 300V flex cord cable, approved for use in sunlight and weather resistant 105°C applications.
SKU: SJEOOW163


• UL listed as Type SJEOOW per UL Standard 62 for flexible cords and fixture wire
• UL approved for Sunlight, Oil, and Weather Resistant & Water Resistant applications
• All materials used in the manufacture of this cable are RoHS compliant
• Made in the USA

This spec is for informational purposes and subject to change. This spec may not be suitable for submission. Contact Lake Cable for non-watermark spec sheet.
Products specifications
Attribute nameAttribute value
Conductor
AWG Size & Stranding16 AWG 26 Strands
MaterialAnnealed Bare Copper
Conductor Count3 Conductors
Insulation
MaterialThermoplastic Elastomer (TPE)
Wall Thickness0.032”
Color CodeBlack, White, Green
Assembly
Lay Length2.25” LHL, (5.33 Tw/Ft)
FillersFibrillated polypropylene
BinderTissue
ShieldN/A
Drain WireN/A
Jacket
MaterialThermoplastic Elastomer (TPE)
Wall Thickness0.032”
Diameter0.338”
ColorBlack
RipcordNo
Weight67 lbs./Mft.
Markings
TypeCable shall be permanently identified via surface inkjet print
LegendLAKE CABLE E206089 16AWG (1.31MM2) 3C (UL) SJEOOW OR SJTOOW (TPE) C(UL)US 105’C 300V FT-2 WATER RESISTANT SUN RES P-07-KA090007-1 MSHA “ROHS”
Footage MarkersYes

Remember, all of our wire can feature:

  • Short minumum runs
  • Special jacket colors including stripes
  • Custom print legends
  • Custom cable constructions
  • Custom packaging - boxes or reels
  • Custom lengths
  • Your name on package labels
