SJEOOW164

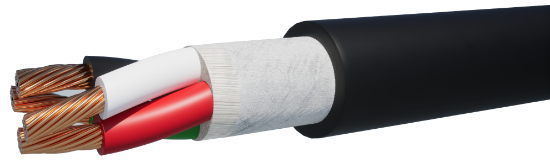

16 AWG 4 conductor 26 strand bare copper with TPE insulation, unshielded with an overall TPE jacket 300V flex cord cable, approved for use in sunlight and weather resistant 105°C applications.
SKU: SJEOOW164

• UL listed as Type SJEOOW per UL Standard 62 for flexible cords and fixture wire
• UL approved for Sunlight, Oil, and Weather Resistant & Water Resistant applications
• All materials used in the manufacture of this cable are RoHS compliant
• Made in the USA
This spec is for informational purposes and subject to change. This spec may not be suitable for submission. Contact Lake Cable for non-watermark spec sheet.
Products specifications
Attribute nameAttribute value
Conductor
AWG Size & Stranding16 AWG 26 Strands
MaterialAnnealed Bare Copper
Conductor Count4 Conductors
Insulation
MaterialThermoplastic Elastomer (TPE)
Wall Thickness0.032”
Color CodeBlack, White, Green, Red
Assembly
Lay Length2.50” LHL, (4.8 Tw/Ft)
FillersFibrillated polypropylene
BinderTissue
ShieldN/A
Drain WireN/A
Jacket
MaterialThermoplastic Elastomer (TPE)
Wall Thickness0.032”
Diameter0.369”
ColorBlack
RipcordNo
Weight85 lbs./Mft.
Markings
TypeCable shall be permanently identified via surface inkjet print
LegendLAKE CABLE E206089 16AWG (1.31MM2) 4C (UL) SJEOOW OR SJTOOW (TPE) C(UL)US 105’C 300V FT-2 WATER RESISTANT SUN RES P-07-KA090007-1 MSHA “ROHS”
Footage MarkersYes

Remember, all of our wire can feature:

  • Short minumum runs
  • Special jacket colors including stripes
  • Custom print legends
  • Custom cable constructions
  • Custom packaging - boxes or reels
  • Custom lengths
  • Your name on package labels
