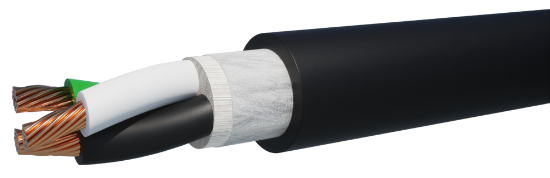

SJEOOW183

18 AWG 3 conductor 16 strand bare copper with TPE insulation, unshielded with an overall TPE jacket 300V flex cord cable, approved for use in sunlight and weather resistant 105°C applications.

SKU: SJEOOW183

• UL listed as Type SJEOOW per UL Standard 62 for flexible cords and fixture wire
• Made in the USA
• UL approved for Sunlight, Oil, and Weather Resistant & Water Resistant applications
• All materials used in the manufacture of this cable are RoHS compliant

This spec is for informational purposes and subject to change. This spec may not be suitable for submission. Contact Lake Cable for non-watermark spec sheet.

Products specifications

Attribute name	Attribute value
Conductor
AWG Size & Stranding	18 AWG 16 Strands
Material	Annealed Bare Copper
Conductor Count	3 Conductors
Insulation
Material	Thermoplastic Elastomer (TPE)
Wall Thickness	0.032”
Color Code	Black, White, Green
Assembly
Lay Length	2.00” LHL, (6.0 Tw/Ft)
Fillers	Fibrillated polypropylene
Binder	Tissue
Shield	N/A
Drain Wire	N/A
Jacket
Material	Thermoplastic Elastomer (TPE)
Wall Thickness	0.032”
Diameter	0.310”
Color	Black
Ripcord	No
Weight	52 lbs./Mft.
Markings
Type	Cable shall be permanently identified via surface inkjet print
Legend	LAKE CABLE E206089 18AWG (0.82MM2) 3C (UL) SJEOOW OR SJTOOW (TPE) C(UL)US 105’C 300V FT-2 WATER RESISTANT SUN RES P-07-KA090007-1 MSHA “ROHS”
Footage Markers	Yes

Copper Price 5/3/2024 4.5495
