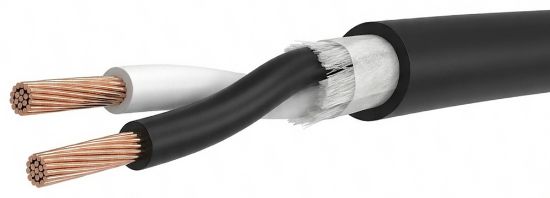

SJTOOW142

14 AWG 2 conductor 41 strand bare copper with PVC insulation, unshielded with an overall PVC jacket 300V flex cord cable, approved for use in sunlight and weather resistant 105°C applications.
SKU: SJTOOW142

• UL listed as Type SJTOOW per UL Standard 62 for flexible cords and fixture wire
• UL approved for Sunlight, Oil, and Weather Resistant & Water Resistant applications
• All materials used in the manufacture of this cable are RoHS compliant
• Made in the USA
This spec is for informational purposes and subject to change. This spec may not be suitable for submission. Contact Lake Cable for non-watermark spec sheet.
Products specifications
Attribute nameAttribute value
Conductor
AWG Size & Stranding14 AWG 41Strands Class K
MaterialAnnealed Bare Copper
Conductor Count2 Conductors
Jacket
MaterialPolyvinylchloride (PVC)
Wall Thickness0.032”
Diameter0.344”
ColorBlack
RipcordNo
Weight66 lbs./Mft.
Assembly
Lay Length2.25” LHL, (5.3 Tw/Ft)
FillersFibrillated polypropylene
BinderTissue
ShieldN/A
Drain WireN/A
Insulation
MaterialPolyvinylchloride (PVC)
Wall Thickness0.032”
Color CodeBlack, White
Markings
TypeCable shall be permanently identified via surface inkjet print
LegendLAKE CABLE E206089 14AWG (2.08MM²) 2C (UL) SJTOOW VW-1 C(UL)US 105’C 300V FT-2 WATER RESISTANT SUN RES “ROHS”
Footage MarkersYes
