SJTOOW143

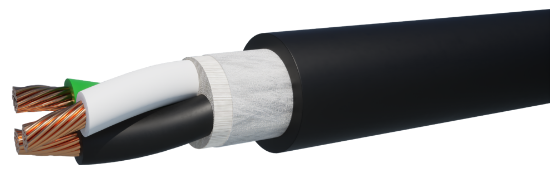

14 AWG 3 conductor 41 strand bare copper with PVC insulation, with an overall PVC jacket 300V flex cord cable, approved for use in sunlight and weather resistant 105°C applications.
SKU: SJTOOW143

• UL approved for Sunlight, Oil, and Weather Resistant & Water Resistant applications
• All materials used in the manufacture of this cable are RoHS compliant
• Made in the USA
• UL listed as Type SJTOOW per UL Standard 62 for flexible cords and fixture wire
This spec is for informational purposes and subject to change. This spec may not be suitable for submission. Contact Lake Cable for non-watermark spec sheet.
Products specifications
Attribute nameAttribute value
Conductor
AWG Size & Stranding14 AWG 41Strands Class K
MaterialAnnealed Bare Copper
Conductor Count3 Conductors
Insulation
MaterialPolyvinylchloride (PVC)
Wall Thickness0.032”
Color CodeBlack, White, Green
Assembly
Lay Length3.00” LHL, (4.0 Tw/Ft)
FillersFibrillated polypropylene
BinderTissue Wrap
ShieldN/A
Drain WireN/A
Jacket
MaterialPolyvinylchloride (PVC)
Wall Thickness0.035”
Diameter0.366”
ColorBlack
RipcordNo
Weight93 lbs./Mft.
Markings
TypeCable shall be permanently identified via surface inkjet print
LegendLAKE CABLE E206089 14AWG (2.08MM²) 3C (UL) SJTOOW VW-1 C(UL)US 105’C 300V FT-2 WATER RESISTANT SUN RES “ROHS”
Footage MarkersYes
