Picture of SJTOOW183
Picture of SJTOOW183
Picture of SJTOOW183

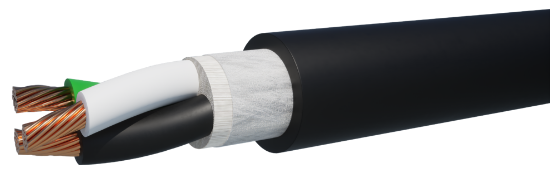

For representation only. Cable constructions may vary from illustration. Please see spec sheet for complete details.

SJTOOW183

Not what you were looking for?
18AWG 3C 16STR BC NS PVC/PVC (UL) SJTOOW 105C 300V
SKU: SJTOOW183


18 AWG 3C 16 STRAND BARE COPPER WIRE WITH .032" PVC INSULATION, NON-SHIELDED, FILLERS AND OVERALL TISSUE WRAP TAPE, OVERALL .037" BLACK PRESSURE PVC JACKET.
C(UL)US SJTOOW 105C 300V FT2 WATER RESISTANT SUN
RES "ROHS COMPLIANT" MADE IN USA
CC: BLACK, WHITE, GREEN
RIPCORD: NO
FOOTAGE MARKERS: YES

This spec is for informational purposes and subject to change. This spec may not be suitable for submission. Contact Lake Cable for non-watermark spec sheet.
Products specifications
Attribute nameAttribute value
Conductor
AWG Size & Stranding18 AWG 16 Strands
MaterialAnnealed Bare Copper
Conductor Count3 Conductors
Insulation
MaterialPolyvinylchloride (PVC)
Wall Thickness0.032”
Color CodeBlack, White, Green
Assembly
Lay Length2.00” LHL, (6.0 Tw/Ft)
FillersFibrillated polypropylene
BinderTissue
ShieldN/A
Drain WireN/A
Jacket
MaterialPolyvinylchloride (PVC)
Wall Thickness0.032”
Diameter0.310”
ColorBlack
RipcordNo
Weight54 lbs./Mft.
Markings
TypeCable shall be permanently identified via surface inkjet print
LegendLAKE CABLE E206089 18AWG (0.82MM²) 3C (UL) SJTOOW C(UL)US 105’C 300V FT-2 WATER RESISTANT SUN RES “ROHS”
Footage MarkersYes
Approvals
Approvals List

• UL listed as Type SJTOOW per UL Standard 62 for flexible cords and fixture wire
• UL approved for Sunlight, Oil, and Weather Resistant & Water Resistant applications
• All materials used in the manufacture of this cable are RoHS compliant
• Made in the USA

Remember, all of our wire can feature:

  • Short minumum runs
  • Special jacket colors including stripes
  • Custom print legends
  • Custom cable constructions
  • Custom packaging - boxes or reels
  • Custom lengths
  • Your name on package labels
