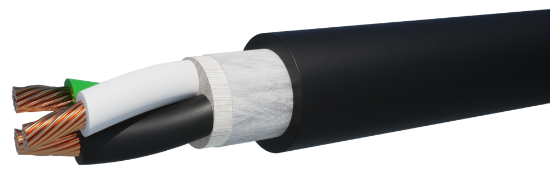

SSTOOW103

Conductor

AWG Size & Stranding:

10 AWG 105 Strands Class K

Material:

Annealed Bare Copper

Conductor Count:

3 Conductors

Insulation

Material:

Polyvinylchloride

Wall Thickness:

0.047”

Color Code:

Black, White, Green

Assembly

Lay Length:

4.25” LHL

Fillers:

Non-Hygroscopic Polypropylene - As required for a circular cross-section

Binder:

Clear Mylar

Shield:

No

Drain Wire:

No

Jacket

Material:

Polyvinylchloride

Wall Thickness:

0.100”

Diameter:

0.661”

Color:

Black

Ripcord:

No

Cold Bend Rating:

-40°C

Weight:

254 lbs./Mft.

Markings

Type:

Cable shall be permanently identified via surface inkjet print

Legend:

LAKE CABLE E208309 10AWG (5.26MM2) 3C (UL) TC-ER THW-2/VW-1 600V 90’C DRY/WET PVC JACKET SUN RES DIR BUR OIL RES I & II FT4 OR C(UL)US STOOW VW-1 105’C 600V FT2 WATER RESISTANT SUN RES “ROHS II” MADE IN USA

Footage Markers:

Yes

Approvals

Approvals List:

• Cable is suitable for use in Class I Division II hazardous locations
• UL listed as Type STOOW per UL Standard 62 for flexible cords and fixture wire
• UL listed as Type TC-ER per UL Standard 1277 for tray cables
• UL approved for Sunlight and Weather Resistant & Water Submersed applications
• All materials used in the manufacture of this cable are RoHS II & REACH compliant
• Made in the USA
