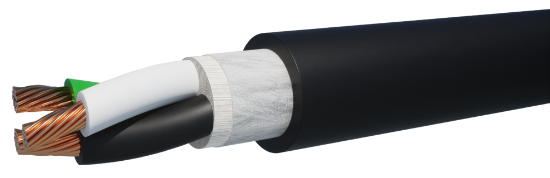

SSTOOW103-18-OM

Conductor

AWG Size & Stranding:

10 AWG 105 Strands Class K

Material:

Annealed Bare Copper

Conductor Count:

3 Conductors

Insulation

Material:

Polyvinylchloride

Wall Thickness:

0.047”

Color Code:

Black, White, Green

Assembly

Lay Length:

4.25” LHL

Fillers:

Non-Hygroscopic Polypropylene - As required for a circular cross-section

Binder:

Non-Woven Polyester Tape Binder

Shield:

No

Drain Wire:

No

Jacket

Material:

Polyvinylchloride

Wall Thickness:

0.100”

Diameter:

0.660” ± 0.055”

Color:

Gray

Ripcord:

Yes (2-Ply)

Cold Bend Rating:

-40°C

Weight:

292 lbs./Mft.

Markings

Type:

Cable shall be permanently identified via surface inkjet print

Legend:

LAKE CABLE E208309 10AWG (5.26MM2) 3C (UL) TC-ER THW-2/VW-1 600V 90°C DRY/WET PVC JACKET SUN RES DIR BUR OIL RES I & II FT4 OR C(UL)US STOOW VW-1 105°C 600V FT2 WATER RESISTANT SUN RES “ROHS COMPLIANT” MADE IN USA DC1003-06

Footage Markers:

Yes

Approvals

Approvals List:

• Refer to NEC (NFPA 70) article 336 for installation guidelines
• Cable is suitable for use in Class I Division 2 hazardous locations
• UL listed as Type TC-ER per UL Standard 1277 for tray cables
• UL approved for Direct Burial, Sunlight and Oil I & II Resistant applications per UL 1277
• Individual conductors pass UL VW-1 flame test, rated THW-2/VW-1
• UL listed as Type STOOW per UL Standard 62 for flexible cords
• UL approved for Sunlight, Oil and Weather Resistant & Water Submersed applications per UL 62
• Cable meets UL 1581 & 1202 (FT-4) 70,000 BTU/HR
• UL approved for Sunlight and Weather Resistant & Water Submersed applications
• Cable meets RoHS 2002/95/EC Directive, RoHS 2 2011/65/EU Directive & RoHS 3 2015/863/EU Directive
• Cable is REACH compliant per Regulation (EC) No 1907/2006 Updated June, 27 2018
• Made in the USA
• WARNING: This product may contain chemicals, such as Vinyl Chloride, known to the state of California to cause birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov. Wash hands after handling.
