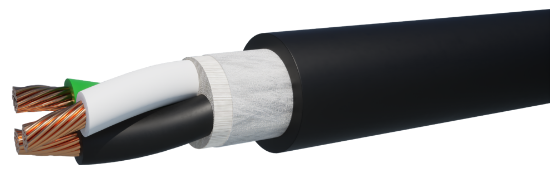

SSTOOW123-OM

Conductor

AWG Size & Stranding:

12 AWG 65 Strands Class K

Material:

Annealed Bare Copper

Conductor Count:

3 Conductors

Insulation

Material:

Polyvinylchloride

Wall Thickness:

0.047”

Color Code:

Black, White, Green

Assembly

Fillers:

Non-Hygroscopic Polypropylene - As required for a circular cross-section

Binder:

Non-Woven Wrap

Shield:

No

Drain Wire:

No

Jacket

Material:

Polyvinylchloride

Wall Thickness:

0.107”

Diameter:

0.605” + 0.030 / - 0.015”

Color:

Black

Ripcord:

Yes (2-Ply)

Cold Bend Rating:

-40°C

Weight:

220 lbs./Mft.

Markings

Type:

Cable shall be permanently identified via surface inkjet print

Legend:

LAKE CABLE E208309 12AWG (3.31MM2) 3C (UL) TC-ER THW-2/VW-1 600V 90C DRY/WET PVC JACKET SUN RES DIR BUR OIL RES I & II FT4 OR C(UL)US STOOW VW-1 105 600V FT2 WATER RESISTANT SUN RES “ROHS COMPLIANT” MADE IN USA

Footage Markers:

Yes, Ascending

Approvals

Approvals List:

• Refer to NEC (NFPA 70) article 336 for installation guidelines
• Cable is suitable for use in Class I Division 2 hazardous locations
• UL listed as Type TC-ER per UL Standard 1277 for tray cables
• UL approved for Direct Burial, Sunlight and Oil I & II Resistant applications per UL 1277
• Individual conductors pass UL VW-1 flame test, rated THW-2/VW-1
• UL listed as Type STOOW per UL Standard 62 for flexible cords
• UL approved for Sunlight, Oil and Weather Resistant & Water Submersed applications per UL 62
• Cable meets UL 1581 & 1202 (FT-4) 70,000 BTU/HR
• UL approved for Sunlight and Weather Resistant & Water Submersed applications
• Cable meets RoHS 2002/95/EC Directive, RoHS 2 2011/65/EU Directive, RoHS 3 2015/863/EU Directive
• Cable is REACH compliant per Regulation (EC) No 1907/2006 (235) Updated June 14, 2023
• Made in the USA
• For tray cable: 30 amps with 90°C insulation in ambient temperature of 30°C
• For portable cords: 25 amps with 90°C insulation in ambient temperature of 30°C
• WARNING: This product may contain chemicals, such as Vinyl Chloride, known to the state of California to cause cancer. For more information, go to www.P65Warnings.ca.gov. Wash hands after handling.
