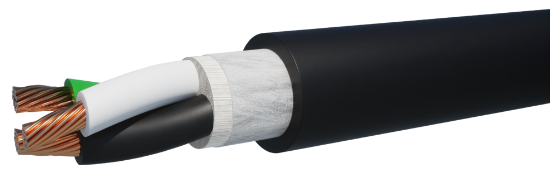

SSTOOWIG23

Conductor

AWG Size & Stranding:

2 AWG 665 Strands Class K

Material:

Annealed Bare Copper

Conductor Count:

3 Conductors

Insulation

Material:

Polyvinylchloride

Wall Thickness:

0.062”

Color Code:

Method 1, Table E-2

Assembly

Ground:

Insulated (Green) – 6 AWG 266 Strand Bare Copper

Fillers:

Non-Hygroscopic Polypropylene - As required for a circular cross-section

Binder:

Non-Woven Polyester

Jacket

Material:

Polyvinylchloride

Wall Thickness:

0.194”

Diameter:

1.370” ± 0.070”

Color:

Black

Ripcord:

No

Cold Bend Rating:

-40°C

Weight:

1512 lbs./Mft.

Markings

Type:

Cable shall be permanently identified via surface inkjet print

Legend:

LAKE CABLE E208309 2AWG (33.6mm2) 3C (UL) TC-ER THW-2/VW-1 INSULATED GROUND 600V 90C DRY/WET PVC JACKET SUN RES DIR BUR OIL RES I & II FT4 OR C(UL)US STOOW 105C 600V FT2 WATER RESISTANT SUN RES "ROHS COMPLIANT" MADE IN USA

Footage Markers:

Yes

Approvals

Approvals List:

• Refer to NEC (NFPA 70) article 336 for installation guidelines
• Cable is suitable for use in Class I Division 2 hazardous locations
• UL listed as Type TC-ER per UL Standard 1277 for tray cables
• UL approved for Direct Burial, Sunlight and Oil I & II Resistant applications per UL 1277
• Conductors pass UL VW-1 flame test, rated THW-2/VW-1
• UL listed as Type STOOW per UL Standard 62 for flexible cords
• UL approved for Sunlight, Oil and Weather Resistant & Water Submersed applications per UL 62
• Cable meets UL 1581 & IEEE 1202 (FT-4) 70,000 BTU/HR
• Due to the frequent updates to regulations, specifically California Proposition 65, EU REACH SVHCs and ROHS please contact Lake Cable for the most up to date compliance statement.
