T122T(65)-45BLD

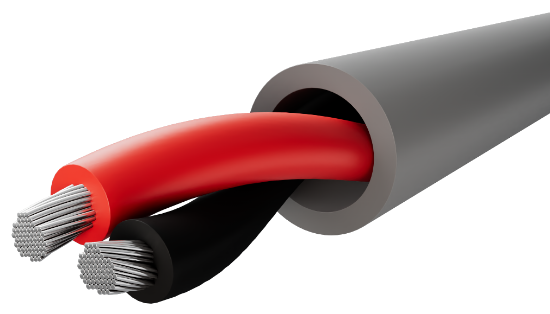

12 AWG 2 conductors 7 strands tinned copper wire, PVC insulation, unshielded with an overall PVC jacket.
SKU: T122T(65)-45BLD


• Cable suitable for installation under NEC (NFPA 70) articles 725 guidelines
• Cable suitable for installation in Canada under Section 60 of CEC, Part I
• Cable suitable for use in Class I Division 2 hazardous locations
• UL listed as PLTC per UL standard 13
• CSA listed as AWM, Class I or II, Group A or B, per CSA standard C22.2 No. 210-15
• Cable is UL approved for Sunlight Resistant and Direct Burial Applications
• Meets IEEE 1202 flame test
• Cable meets RoHS 2002/95/EC Directive, RoHS 2 2011/65/EU Directive, RoHS 3 2015/863/EU Directive
• Cable is REACH compliant per Regulation (EC) No 1907/2006 (224) Updated June 10, 2022
• Made in the USA

This spec is for informational purposes and subject to change. This spec may not be suitable for submission. Contact Lake Cable for non-watermark spec sheet.
Products specifications
Attribute nameAttribute value
Conductor
AWG Size & Stranding12 AWG 65 Strands Class K
MaterialAnnealed Tinned Copper
Conductor Count2 Conductors
Insulation
MaterialPolyvinylchloride
Wall Thickness0.025”
Color CodeBlack, Red
Assembly
GroundN/A
FillersN/A
BinderN/A
ShieldN/A
Drain WireN/A
Jacket
MaterialPolyvinylchloride
Wall Thickness0.042”
Diameter0.368” ± 0.030”
ColorChrome
RipcordYes
Cold Bend RatingN/A
Weight80 Lbs/Mft
Markings
TypeCable permanently identified via surface inkjet print
LegendLAKE CABLE E208158 12AWG 2C 105C (UL) ITC SUN RES OR PLTC OR CL3 FT4 "WET LOCATIONS" "ROHS COMPLIANT" MADE IN USA
Footage MarkersYes, Ascending
