T124

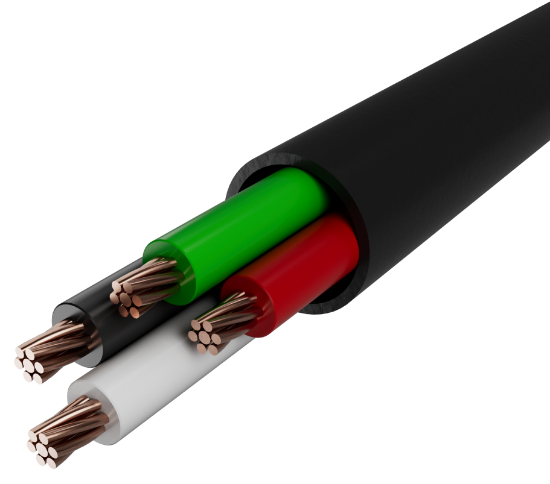

12 AWG 4 conductors 7 strand bare copper wire, PVC insulation, with an overall PVC jacket. (UL) ITC or PLTC 105’C SUN RES DIR BUR FT-4 “ROHS”

SKU: T124

• UL listed as type PLTC & CL3 per UL standard 13 and as type ITC per UL standard 2250
• Cable is suitable for use in Class I Division II hazardous locations
• Cable is UL approved for Sunlight Resistant & Direct Burial Applications.
• Meets IEEE 1202 flame test
• All materials used in the manufacture of this cable are RoHS compliant
• Made in the USA

This spec is for informational purposes and subject to change. This spec may not be suitable for submission. Contact Lake Cable for non-watermark spec sheet.

Products specifications

Attribute name	Attribute value
Conductor
AWG Size & Stranding	12 AWG 7 Strands Class B
Material	Annealed Bare Copper
Conductor Count	4 Conductors
Insulation
Material	Polyvinylchloride
Wall Thickness	0.020”
Color Code	Black, White, Red, Green
Assembly
Cable Lay Length	5.00” LHL (2.40 Tw/Ft)
Cable Binder	N/A
Cable Shield	N/A
Cable Drain Wire	N/A
Jacket
Material	Polyvinylchloride
Wall Thickness	0.050”
Diameter	0.425”
Color	Black
Ripcord	Yes
Weight	142 Lbs/Mft
Markings
Type	Cable shall be permanently identified via surface inkjet print
Legend	LAKE CABLE E171202 12AWG 4C (UL) PLTC OR (UL) ITC OR (UL) CL3 105’C SUN RES DIR BUR FT-4 “ROHS”
Footage Markers	Yes
Standards
Maximum Voltage	300V

Copper Price 12/7/2023 3.7535
