T143

14/3C 7STR BC UNS ITC/PLTC/CL3 SR 300V 105C

SKU: T143

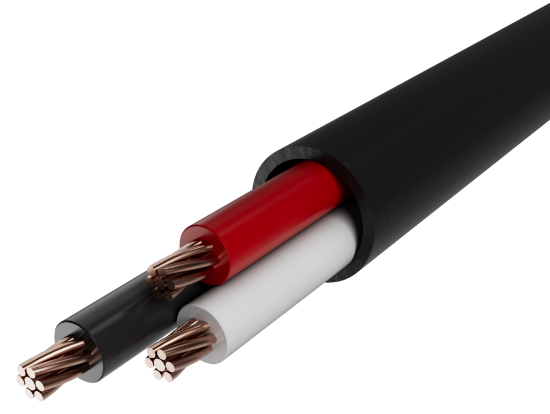

14 AWG 3C 7 STRAND BARE COPPER WIRE WITH .020" PVC INSULATION, NON-SHIELDED, OVERALL .040" BLACK PVC JACKET.
(UL) ITC OR PLTC 105'C OR CL3
SUN RES DIR BUR FT-4 "ROHS"
CC: BLACK, WHITE, RED

This spec is for informational purposes and subject to change. This spec may not be suitable for submission. Contact Lake Cable for non-watermark spec sheet.

Products specifications

Attribute name	Attribute value
Conductor
AWG Size & Stranding	14 AWG 7 Strands Class B
Material	Annealed Bare Copper
Conductor Count	3 Conductors
Insulation
Material	Polyvinylchloride
Wall Thickness	0.020”
Color Code	Black, White, Red
Assembly
Cable Lay Length	2.75” LHL (4.36 Tw/Ft)
Cable Binder	N/A
Cable Shield	N/A
Cable Drain Wire	N/A
Jacket
Material	Polyvinylchloride
Wall Thickness	0.040”
Diameter	0.324”
Color	Black
Ripcord	Yes
Weight	77 Lbs/Mft
Markings
Type	Cable shall be permanently identified via surface inkjet print
Legend	LAKE CABLE E171202 14AWG 3C (UL) PLTC OR (UL) ITC OR (UL) CL3 105’C SUN RES DIR BUR FT-4 “ROHS”
Footage Markers	Yes
Standards
Maximum Voltage	300V
Approvals
Approvals List	• UL listed as type PLTC & CL3 per UL standard 13 and as type ITC per UL standard 2250 • Cable is suitable for use in Class I Division II hazardous locations • Cable is UL approved for Sunlight Resistant & Direct Burial Applications. • Meets IEEE 1202 flame test • All materials used in the manufacture of this cable are RoHS compliant • Made in the USA

Copper Price 04/30/2025 4.5070
