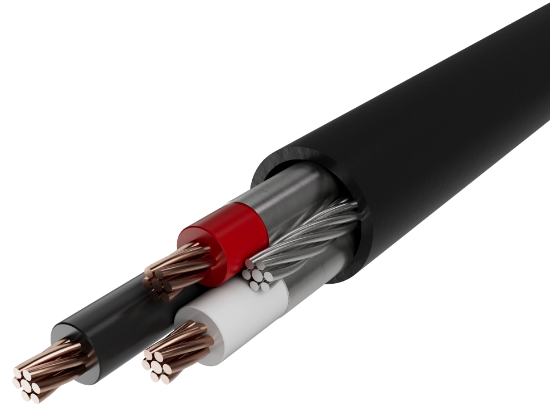

T143S

Conductor

AWG Size & Stranding:

14 AWG 7 Strands Class B

Material:

Annealed Bare Copper

Conductor Count:

3 Conductors

Insulation

Material:

Polyvinylchloride

Wall Thickness:

0.020”

Color Code:

Black, White, Red

Assembly

Cable Lay Length:

3.75” LHL (3.20 Tw/Ft)

Cable Binder:

N/A

Cable Shield:

Aluminum Mylar – 100% Coverage

Cable Drain Wire:

16AWG 7 Strand Tinned Copper

Jacket

Material:

Polyvinylchloride

Wall Thickness:

0.040”

Diameter:

0.329” ± 0.030”

Color:

Black

Ripcord:

Yes

Weight:

86 Lbs/Mft

Markings

Type:

Cable shall be permanently identified via surface inkjet print

Legend:

LAKE CABLE E171202 14AWG 3C SHLD (UL) PLTC OR (UL) ITC OR (UL) CL3 105’C SUN RES DIR BUR FT-4 “ROHS”

Footage Markers:

Yes

Electrical Characteristics

Capacitance:

32.24 pF/ft

DC Resistance:

2.672 Ω/Mft. @ 20°C

Electrical Properties

Impedance:

52.50 Ω

Standards

Maximum Voltage:

300V

Approvals

Approvals List:

• Cable suitable for installations under NEC (NFPA 70) article 725 and article 727 guidelines
• UL listed as type PLTC & CL3 per UL standard 13 and as type ITC per UL standard 2250
• Cable is suitable for use in Class I Division 2 hazardous locations
• Cable is UL approved for Sunlight Resistant Applications
• Meets IEEE 1202 flame test
• Maximum Operating Voltage: 300V RMS
• Cable meets RoHS 2002/95/EC Directive, RoHS 2 2011/65/EU Directive, RoHS 3 2015/863/EU Directive
• Cable is REACH compliant per Regulation (EC) No 1907/2006 (241) Updated June 27, 2024
• Made in the USA
• WARNING: This product may contain chemicals, such as Vinyl Chloride, known to the state of California to cause birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov. Wash hands after handling.
