T182

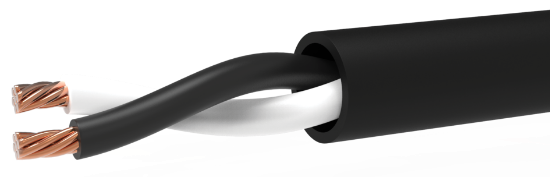

18 AWG 2 conductors 7 strand bare copper wire, PVC insulation, with an overall PVC jacket. (UL) ITC or PLTC 105’C SUN RES DIR BUR FT-4 “ROHS”
SKU: T182


• UL listed as type PLTC & CL3 per UL standard 13 and as type ITC per UL standard 2250
• Cable is suitable for use in Class I Division II hazardous locations
• Cable is UL approved for Sunlight Resistant & Direct Burial Applications.
• Meets IEEE 1202 flame test
• All materials used in the manufacture of this cable are RoHS compliant
• Made in the USA

This spec is for informational purposes and subject to change. This spec may not be suitable for submission. Contact Lake Cable for non-watermark spec sheet.
Products specifications
Attribute nameAttribute value
Conductor
AWG Size & Stranding18 AWG 7 Strands Class B
MaterialAnnealed Bare Copper
Conductor Count2 Conductors
Insulation
MaterialPolyvinylchloride
Wall Thickness0.016”
Color CodeBlack, White
Assembly
Cable Lay Length2.50” LHL (4.80 Tw/Ft)
Cable BinderN/A
Cable ShieldN/A
Cable Drain WireN/A
Jacket
MaterialPolyvinylchloride
Wall Thickness0.035”
Diameter0.224”
ColorBlack
RipcordYes
Weight29 Lbs/Mft
Markings
TypeCable shall be permanently identified via surface inkjet print
LegendLAKE CABLE E171202 18AWG 2C (UL) PLTC OR (UL) ITC OR (UL) CL3 105’C SUN RES DIR BUR FT-4 “ROHS”
Footage MarkersYes
Standards
Maximum Voltage300V

Remember, all of our wire can feature:

  • Short minumum runs
  • Special jacket colors including stripes
  • Custom print legends
  • Custom cable constructions
  • Custom packaging - boxes or reels
  • Custom lengths
  • Your name on package labels
