T182S

18/1PR 7STR BC OAS ITC/PLTC/CL3 SR 105C BLACK

SKU: T182S

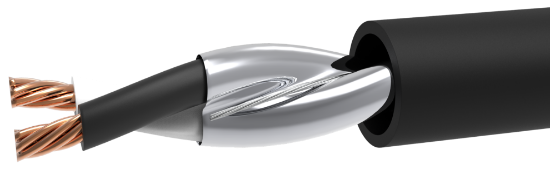

18 AWG 1 PAIR 7 STRAND BARE COPPER WIRE WITH .016" PVC INSULATION, OVERALL ALUMINUM MYLAR TAPE SHIELD WITH A 20 AWG 7 STRAND TINNED COPPER DRAIN WIRE, OVERALL .035" BLACK PVC JACKET.
(UL) PLTC OR (UL) ITC 105'C OR (UL) CL3 SUN RES DIR BUR FT-4 "ROHS COMPLIANT" MADE IN USA
CC: BLACK & WHITE
RIPCORD: YES
FOOTAGE MARKERS: YES

This spec is for informational purposes and subject to change. This spec may not be suitable for submission. Contact Lake Cable for non-watermark spec sheet.

Products specifications

Attribute name	Attribute value
Conductor
AWG Size & Stranding	18 AWG 7 Strands Class B
Material	Annealed Bare Copper
Conductor Count	2 Conductors
Insulation
Material	Polyvinylchloride
Wall Thickness	0.016”
Color Code	Black, White
Assembly
Cable Lay Length	2.25” LHL (5.33 Tw/Ft)
Cable Binder	N/A
Cable Shield	Aluminum Mylar – 100% Coverage
Cable Drain Wire	22AWG 7 Strand Tinned Copper
Jacket
Material	Polyvinylchloride
Wall Thickness	0.035”
Diameter	0.207”
Color	Black
Ripcord	Yes
Weight	26 Lbs/Mft
Markings
Type	Cable shall be permanently identified via surface inkjet print
Legend	LAKE CABLE E171202 18AWG 2C SHLD (UL) PLTC OR (UL) ITC OR (UL) CL3 105’C SUN RES DIR BUR FT-4 “ROHS”
Footage Markers	Yes
Standards
Maximum Voltage	300V
Approvals
Approvals List	• UL listed as type PLTC & CL3 per UL standard 13 and as type ITC per UL standard 2250 • Cable is suitable for use in Class I Division II hazardous locations • Cable is UL approved for Sunlight Resistant & Direct Burial Applications. • Meets IEEE 1202 flame test • All materials used in the manufacture of this cable are RoHS compliant • Made in the USA

Copper Price 04/30/2025 4.5070
