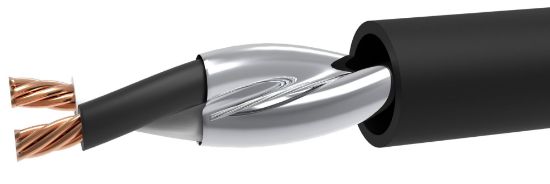

TXH162ST

Conductor

AWG Size & Stranding:

16 AWG 7 Strands Class B

Material:

Annealed Tinned Copper

Conductor Count:

2 Conductors

Insulation

Material:

Cross-linked Polyethylene

Wall Thickness:

0.015”

Color Code:

Black & White

Assembly

Binder:

Clear Mylar – if required

Shield:

Aluminum/Mylar Tape - 100% coverage

Drain Wire:

18 AWG 7 Strand Tinned Copper

Jacket

Material:

Low Smoke FR Zero Halogen Polyolefin (LSFR-0HPO)

Wall Thickness:

0.035"

Diameter:

0.249"

Color:

Black

Ripcord:

Yes

Weight:

45 lbs/Mft

Markings

Type:

Cable shall be permanently identified via surface inkjet print

Legend:

LAKE CABLE E208158 16AWG 2C 105C SHIELDED (UL) ITC-ST1 LSZH JACKET SUN RES OR PLTC-ST1 FT4 "WET LOCATIONS" "ROHS COMPLIANT" MADE IN USA

Footage Markers:

Yes

Approvals

Approvals List:

• Cable suitable for installations under NEC (NFPA 70) article 725 and article 727 guidelines
• UL listed as Type PLTC-ST1 per UL Standard 13 and ITC-ST1 Type per UL Standard 2250
• Cable is suitable for use in Class I Division 2 hazardous locations
• UL approved for Sunlight Resistant & Low Smoke applications
• Recommended Operating Voltage: 300V RMS
• Due to the frequent updates to regulations, specifically California Proposition 65, EU REACH SVHCs and ROHS please contact Lake Cable for the most up to date compliance statement.
