V103S

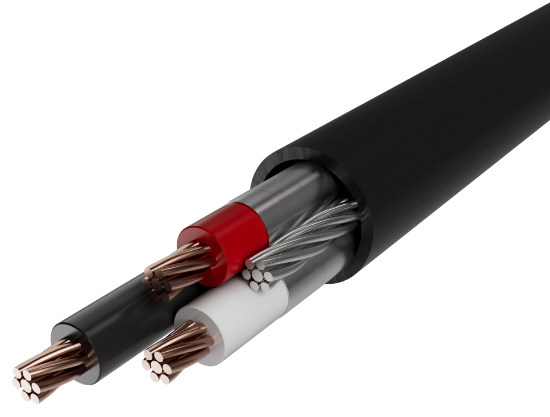

10 AWG 3 conductor 7 strand bare copper with polyvinylchloride and nylon insulation, an aluminum/mylar shield with a stranded tinned copper drain wire with an overall PVC jacket 600V control tray cable, approved for use in SUN RES DIR BUR OIL RES I 90°C applications.

SKU: V103S

• Refer to NEC (NFPA 70) article 1277 for installation guidelines
• Cable is suitable for use in Class I Division II hazardous locations
• Individual conductors pass UL VW-1 flame test, rated THHN/THWN/VW-1
• UL listed as Type TC-ER per UL Standard 1277 for tray cables
• UL approved for Direct Burial, Sunlight and Oil I Resistant applications
• Cable meets UL 1581 & 1202 (FT-4) 70,000 BTU/HR & ICEA T-29-520 210,000 BTU/HR requirements
• Meets ICEA S-73-532, where applicable
• All materials used in the manufacture of this cable are RoHS compliant
• Made in the USA

This spec is for informational purposes and subject to change. This spec may not be suitable for submission. Contact Lake Cable for non-watermark spec sheet.

Products specifications

Attribute name	Attribute value
Conductor
AWG Size & Stranding	10 AWG 7 Strands Class B
Material	Annealed Bare Copper
Conductor Count	3 Conductors
Insulation
Material	Polyvinylchloride & Nylon
Wall Thickness	0.020” PVC & 0.005” Nylon
Color Code	Method 1, Table E-2
Assembly
Lay Length	Per UL Standard 1277
Fillers	N/A
Binder	N/A
Shield	Aluminum/Mylar Tape - 100% coverage
Drain Wire	14 AWG 7 Strand Tinned Copper
Jacket
Material	Polyvinylchloride
Wall Thickness	0.045”
Diameter	0.449”
Color	Black
Ripcord	Yes
Cold Bend Rating	-40°C
Weight	174 lbs./Mft.
Markings
Type	Cable shall be permanently identified via surface inkjet print
Legend	LAKE CABLE E208309 10AWG 3C SHIELDED (UL) TC-ER PVC/NYLON 600V 90’C DRY/WET PVC JACKET SUN RES DIR BUR OIL RES I FT4 “ROHS”
Footage Markers	Yes

Copper Price 9/29/2023 3.7400
