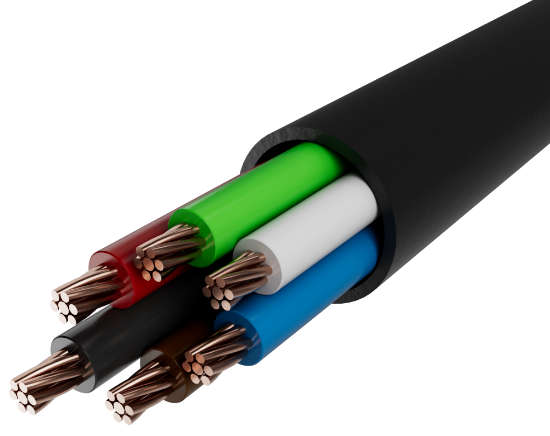

Picture of V106
For representation only. Cable constructions may vary from illustration. Please see spec sheet for complete details.

V106

Not what you were looking for?
10AWG 6C 7STR BC NS VNTC (UL) TC-ER-JP 600V 90C
SKU: V106


10 AWG 6C 7 STRAND BARE COPPER WIRE WITH .020" PVC & .005" NYLON INSULATION, FILLERS, NON-SHIELDED, OVERALL .060" BLACK PVC JACKET.

(UL) TC-ER-JP-JP THWN-2/VW-1 600V 90'C DRY/WET SUN RES DIR BUR "ROHS COMPLIANT" MADE IN USA

CC: METHOD 1, TABLE E-2

RIPCORD: YES

FOOTAGE MARKERS: YES

This spec is for informational purposes and subject to change. This spec may not be suitable for submission. Contact Lake Cable for non-watermark spec sheet.
Products specifications
Attribute nameAttribute value
Jacketing
RipcordYes
Conductor
AWG Size & Stranding10 AWG 7 Strand Class B
MaterialBare Copper Wire
Conductor Count6
Insulation
MaterialPolyvinylchloride/Nylon
Wall Thickness0.020" PVC, 0.005" Nylon
Color CodeMethod 1, Table E-2, Black, Red, Blue, Orange, Yellow, Brown
Assembly
Nominal Lay Length7.5"
ShieldNon-Shielded
Drain WireNo
Jacket
MaterialPolyvinylchloride
Wall Thickness.060"
ColorBlack
Outside Diameter0.615"
Weight312 lbs./Mft
Markings
TypePermanent Inkjet Surface Print
LegendLAKE CABLE E208309 10AWG 6C (UL) TC-ER THWN-2/VW-1 600V 90'C DRY/WET SUN RES DIR BUR "ROHS II" MADE IN USA
Footage MarkersAscending/Descending
Standards
Maximum Voltage600V
Operating Temperature Range90C
Approvals
Approvals List

• Refer to NEC (NFPA 70) article 1277 for installation guidelines
• Cable is suitable for use in Class I Division II hazardous locations
• Individual conductors pass UL VW-1 flame test, rated THHN/THWN/VW-1
• UL listed as Type TC-ER per UL Standard 1277 for tray cables
• UL approved for Direct Burial and Sunlight Resistant applications
• Cable meets UL 1581 & 1202 (FT-4) 70,000 BTU/HR & ICEA T-29-520 210,000 BTU/HR requirements
• Meets ICEA S-73-532, where applicable
• All materials used in the manufacture of this cable are RoHS compliant
• Made in the USA
