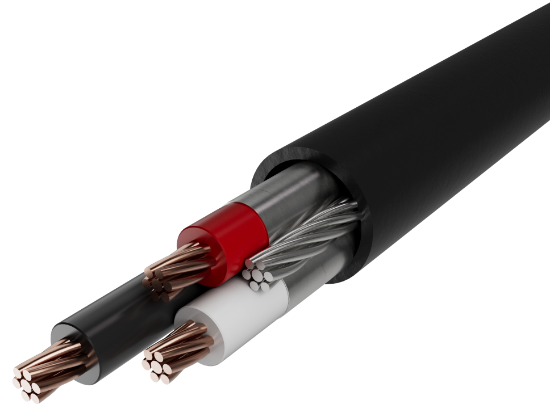

Picture of V123S
For representation only. Cable constructions may vary from illustration. Please see spec sheet for complete details.

V123S

Not what you were looking for?
12AWG 3C 7STR BC OAS VNTC (UL) TC-ER 600V 90C
SKU: V123S


12 AWG 3C 7 STRAND BARE COPPER WIRE WITH .015" PVC & .005" NYLON INSULATION, OVERALL ALUMINUM MYLAR TAPE SHIELD WITH A 16 AWG 7 STRAND TINNED COPPER DRAIN WIRE, OVERALL .045" BLACK PVC JACKET.

(UL) TC-ER-JP-JP THWN-2/VW-1 600V 90'C DRY/WET SUN RES DIR BUR FT4 "ROHS COMPLIANT" MADE IN USA

CC: METHOD 1, TABLE E-2

RIPCORD: YES

FOOTAGE MARKERS: YES

This spec is for informational purposes and subject to change. This spec may not be suitable for submission. Contact Lake Cable for non-watermark spec sheet.
Products specifications
Attribute nameAttribute value
Jacketing
RipcordYes
Conductor
AWG Size & Stranding12 AWG 7 Strand Class B
MaterialBare Copper Wire
Conductor Count3
Insulation
MaterialPolyvinylchloride/Nylon
Wall Thickness0.015" PVC, 0.005" Nylon
Color CodeMethod 1, Table E-2, Black, Red, Blue
Assembly
Lay LengthPer UL Standard 1277
FillersN/A
BinderN/A
ShieldAluminum Mylar Tape
Drain Wire16 AWG 7 Strand Tinned Copper
Nominal Lay Length4.5"
Jacket
MaterialPolyvinylchloride
Wall Thickness.045"
Diameter0.384”
ColorBlack
RipcordYes
Cold Bend Rating-40°C
Weight114 lbs./Mft
Outside Diameter0.369"
Markings
TypePermanent Inkjet Surface Print
LegendLAKE CABLE E208309 12AWG 3C (UL) TC-ER THWN-2/VW-1 600V 90'C DRY/WET SUN RES DIR BUR FT4 "ROHS COMPLIANT" MADE IN USA
Footage MarkersAscending/Descending
Standards
Maximum Voltage600V
Operating Temperature Range90C
Approvals
Approvals List

• Refer to NEC (NFPA 70) article 1277 for installation guidelines
• Cable is suitable for use in Class I Division II hazardous locations
• Individual conductors pass UL VW-1 flame test, rated THHN/THWN/VW-1
• UL listed as Type TC-ER per UL Standard 1277 for tray cables
• UL approved for Direct Burial and Sunlight Resistant applications
• Cable meets UL 1581 & 1202 (FT-4) 70,000 BTU/HR & ICEA T-29-520 210,000 BTU/HR requirements
• Meets ICEA S-73-532, where applicable
• All materials used in the manufacture of this cable are RoHS compliant
• Made in the USA
