V126

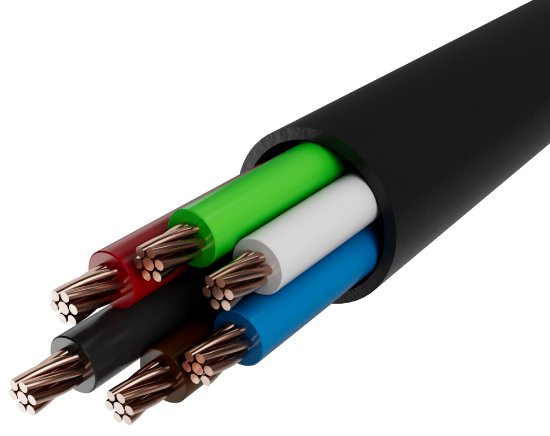

12 AWG 6 conductor 7 strand bare copper with polyvinylchloride and nylon insulation, unshielded with an overall PVC jacket 600V control tray cable, approved for use in SUN RES DIR BUR 90°C applications.

SKU: V126

• Cable meets UL 1581 & 1202 (FT-4) 70,000 BTU/HR & ICEA T-29-520 210,000 BTU/HR requirements
• Meets ICEA S-73-532, where applicable
• All materials used in the manufacture of this cable are RoHS compliant
• Made in the USA
• UL listed as Type TC-ER per UL Standard 1277 for tray cables
• Refer to NEC (NFPA 70) article 1277 for installation guidelines
• Cable is suitable for use in Class I Division II hazardous locations
• Individual conductors pass UL VW-1 flame test, rated THHN/THWN/VW-1
• UL approved for Direct Burial and Sunlight Resistant applications

This spec is for informational purposes and subject to change. This spec may not be suitable for submission. Contact Lake Cable for non-watermark spec sheet.

Products specifications

Attribute name	Attribute value
Conductor
AWG Size & Stranding	12 AWG 7 Strands Class B
Material	Annealed Bare Copper
Conductor Count	6 Conductors
Insulation
Material	Polyvinylchloride & Nylon
Wall Thickness	0.015” PVC & 0.005” Nylon
Color Code	Method 1, Table E-2
Assembly
Lay Length	Per UL Standard 1277
Fillers	N/A
Binder	N/A
Shield	N/A
Drain Wire	N/A
Jacket
Material	Polyvinylchloride
Wall Thickness	0.045”
Diameter	0.490”
Color	Black
Ripcord	Yes
Cold Bend Rating	-40°C
Weight	195 lbs./Mft.
Markings
Type	Cable shall be permanently identified via surface inkjet print
Legend	LAKE CABLE E208309 12AWG 6C (UL) TC-ER PVC/NYLON 600V 90’C DRY/WET PVC JACKET SUN RES DIR BUR FT4 “ROHS”
Footage Markers	Yes

Copper Price 5/3/2024 4.5495
