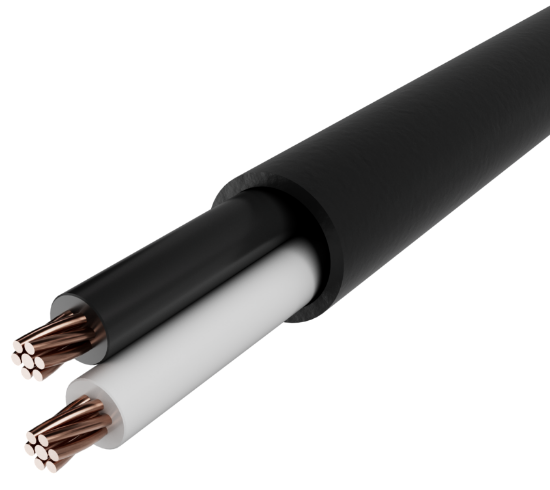

V142

Conductor

AWG Size & Stranding:

14 AWG 7 Strand Class B

Material:

Bare Copper Wire

Conductor Count:

2

Approvals

Approvals List:

• Refer to NEC (NFPA 70) article 1277 for installation guidelines
• Cable is suitable for use in Class I Division II hazardous locations
• Individual conductors pass UL VW-1 flame test, rated THHN/THWN/VW-1
• UL listed as Type TC-ER per UL Standard 1277 for tray cables
• UL approved for Direct Burial and Sunlight Resistant applications
• Cable meets UL 1581 & 1202 (FT-4) 70,000 BTU/HR & ICEA T-29-520 210,000 BTU/HR requirements
• Meets ICEA S-73-532, where applicable
• All materials used in the manufacture of this cable are RoHS compliant
• Made in the USA

Insulation

Material:

Polyvinylchloride/Nylon

Wall Thickness:

0.015" PVC, 0.005" Nylon

Color Code:

Method 1, Table E-2, Black, Red

Assembly

Lay Length:

Per UL Standard 1277

Fillers:

N/A

Binder:

N/A

Shield:

Non-Shielded

Drain Wire:

No

Nominal Lay Length:

Jacket

Material:

Polyvinylchloride

Wall Thickness:

.045"

Diameter:

0.330”

Color:

Black

Ripcord:

Yes

Cold Bend Rating:

-40°C

Weight:

58 lbs./Mft

Outside Diameter:

0.316"

Jacketing

Ripcord:

Yes

Markings

Type:

Permanent Inkjet Surface Print

Legend:

LAKE CABLE E208309 14AWG 2C (UL) TC THWN-2/VW-1 600V 90'C DRY/WET SUN RES DIR BUR FT4 "ROHS COMPLIANT" MADE IN USA

Footage Markers:

Ascending/Descending

Standards

Maximum Voltage:

600V

Operating Temperature Range:

90C
