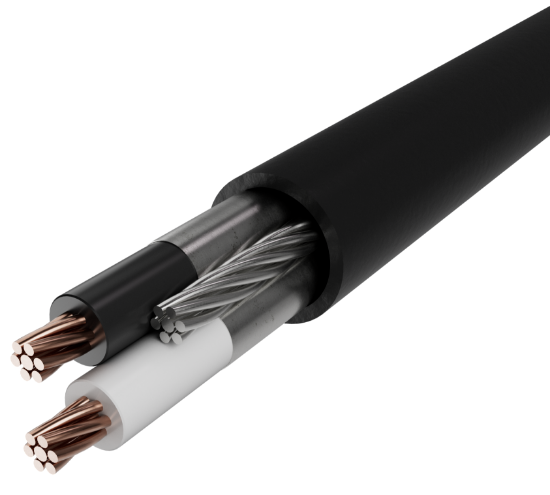

Picture of V162S/22DR
For representation only. Cable constructions may vary from illustration. Please see spec sheet for complete details.

V162S/22DR

Not what you were looking for?
16AWG 2C 7STR BC OAS VNTC (UL) TC 600V 90C
SKU: V162S/22DR


16 AWG 2C 7 STRAND BARE COPPER WIRE WITH .015" PVC & .005" NYLON INSULATION, OVERALL ALUMINUM MYLAR TAPE SHIELD WITH A 22 AWG 7 STRAND TINNED COPPER DRAIN WIRE, OVERALL .045" BLACK PVC JACKET .

(UL) TC 600V 90'C DRY/WET SUN RES DIR BUR FT4 "ROHS COMPLIANT" MADE IN USA

CC: BLACK & RED

RIPCORD: YES

FOOTAGE MARKERS: YES

This spec is for informational purposes and subject to change. This spec may not be suitable for submission. Contact Lake Cable for non-watermark spec sheet.
Products specifications
Attribute nameAttribute value
Jacketing
RipcordYes
Conductor
AWG Size & Stranding16 AWG 7 Strand Class B
MaterialBare Copper Wire
Conductor Count2
Insulation
MaterialPolyvinylchloride/Nylon
Wall Thickness0.015" PVC, 0.005" Nylon
Color CodeMethod 1, Table E-2, Black, Red
Assembly
Nominal Lay Length3"
ShieldAluminum Mylar Tape
Drain Wire22 AWG 7 Strand Tinned Copper
Jacket
MaterialPolyvinylchloride
Wall Thickness.045"
ColorBlack
Outside Diameter.285"
Weight47 lbs./Mft
Markings
TypePermanent Inkjet Surface Print
LegendLAKE CABLE E208309 16AWG 2C (UL) TC 600V 90'C DRY/WET SUN RES DIR BUR FT4 "ROHS COMPLIANT" MADE IN USA
Footage MarkersAscending/Descending
Standards
Maximum Voltage600V
Operating Temperature Range90C
Approvals
Approvals List

• Refer to NEC (NFPA 70) article 1277 for installation guidelines
• Cable is suitable for use in Class I Division II hazardous locations
• Individual conductors pass UL VW-1 flame test, rated THHN/THWN/VW-1
• UL listed as Type TC-ER per UL Standard 1277 for tray cables
• UL approved for Direct Burial and Sunlight Resistant applications
• Cable meets UL 1581 & 1202 (FT-4) 70,000 BTU/HR & ICEA T-29-520 210,000 BTU/HR requirements
• Meets ICEA S-73-532, where applicable
• All materials used in the manufacture of this cable are RoHS compliant
• Made in the USA
