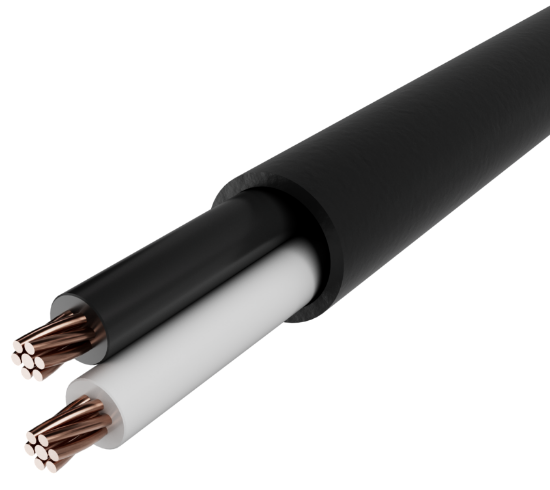

V182

Conductor

AWG Size & Stranding:

18 AWG 7 Strands Class B

Material:

Annealed Bare Copper

Conductor Count:

2 Conductors

Insulation

Material:

Polyvinylchloride & Nylon

Wall Thickness:

0.015” PVC & 0.005” Nylon

Color Code:

Method 1, Table E-2

Assembly

Lay Length:

Per UL Standard 1277

Fillers:

N/A

Binder:

N/A

Shield:

N/A

Drain Wire:

N/A

Jacket

Material:

Polyvinylchloride

Wall Thickness:

0.045”

Diameter:

0.260”

Color:

Black

Ripcord:

Yes

Cold Bend Rating:

-40°C

Weight:

34 lbs./Mft.

Markings

Type:

Cable shall be permanently identified via surface inkjet print

Legend:

LAKE CABLE E208309 18AWG 2C (UL) TC PVC/NYLON 600V 90’C DRY/WET PVC JACKET SUN RES DIR BUR FT4 “ROHS”

Footage Markers:

Yes

Approvals

Approvals List:

• Refer to NEC (NFPA 70) article 1277 for installation guidelines
• Cable is suitable for use in Class I Division II hazardous locations
• UL listed as Type TC per UL Standard 1277 for tray cables
• UL approved for Direct Burial and Sunlight Resistant applications
• Cable meets UL 1581 & 1202 (FT-4) 70,000 BTU/HR & ICEA T-29-520 210,000 BTU/HR requirements
• Meets ICEA S-73-532, where applicable
• All materials used in the manufacture of this cable are RoHS compliant
• Made in the USA
