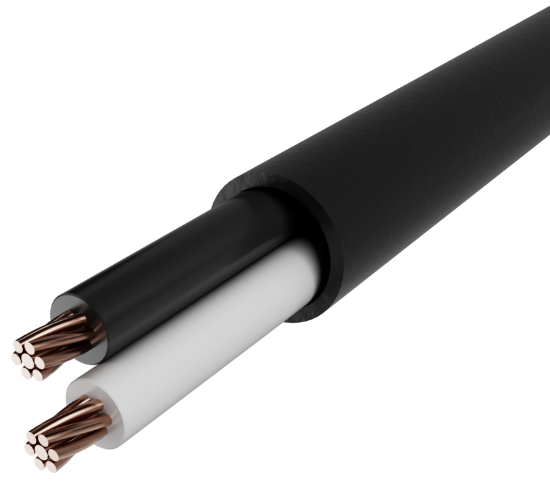

Picture of VG102

VG102

10 AWG 2 conductor 7 strand bare copper with polyvinylchloride and nylon insulation, an uninsulated bare copper ground conductor unshielded with an overall PVC jacket 600V control tray cable, approved for use in SUN RES DIR BUR 90°C applications.
SKU: VG102

• Refer to NEC (NFPA 70) article 1277 for installation guidelines
• Cable is suitable for use in Class I Division II hazardous locations
• UL listed as Type TC-ER per UL Standard 1277 for tray cables
• UL approved for Direct Burial and Sunlight Resistant applications
• Individual conductors pass UL VW-1 flame test, rated THHN/VW-1
• Cable meets UL 1581 & 1202 (FT-4) 70,000 BTU/HR & ICEA T-29-520 210,000 BTU/HR requirements
• Meets ICEA S-73-532, where applicable
• All materials used in the manufacture of this cable are RoHS compliant
• Made in the USA
This spec is for informational purposes and subject to change. This spec may not be suitable for submission. Contact Lake Cable for non-watermark spec sheet.
Products specifications
Attribute nameAttribute value
Conductor
AWG Size & Stranding10 AWG, 7 Strands Class B
MaterialAnnealed Bare Copper
Conductor Count2 Conductors
Insulation
MaterialPolyvinylchloride & Nylon
Wall Thickness0.020” PVC & 0.005” Nylon
Color CodeMethod 1, Table E-2
Assembly
Lay LengthPer UL Standard 1277
GroundUninsulated - 10 AWG, 7 Strand Bare Copper
FillersN/A
BinderClear Mylar
ShieldN/A
Drain WireN/A
Jacket
MaterialPolyvinylchloride
Wall Thickness0.045”
Diameter0.417”
ColorBlack
RipcordYes
Cold Bend Rating-40°C
Weight156 lbs./Mft.
Markings
TypeCable shall be permanently identified via surface inkjet print
LegendLAKE CABLE E208309 10AWG 2C (UL) TC-ER PVC/NYLON UNINSULATED GROUND 600V 90’C DRY/WET PVC JACKET SUN RES DIR BUR FT4 “ROHS”
Footage MarkersYes
