VG104

10AWG 4C 7STR BC + UNINS GRND NS VNTC (UL) TC-ER 600V 90C

SKU: VG104

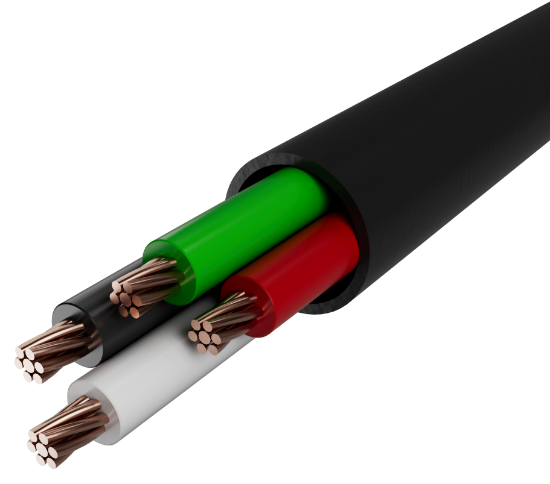

10 AWG 4C 7 STRAND BARE COPPER WIRE WITH .020" PVC & .005" NYLON INSULATION, + #10 AWG 7 STRAND UNINSULATED BARE COPPER GROUND WIRE, NON-SHIELDED, FILLERS & CLEAR MYLAR WRAP TAPE, OVERALL .045" BLACK PVC JACKET.
(UL) TC-ER 600V 90'C DRY 75'C WET
SUN RES DIR BUR "ROHS"
CC: METHOD 1, TABLE E-2

This spec is for informational purposes and subject to change. This spec may not be suitable for submission. Contact Lake Cable for non-watermark spec sheet.

Products specifications

Attribute name	Attribute value
Conductor
AWG Size & Stranding	10 AWG, 7 Strands Class B
Material	Annealed Bare Copper
Conductor Count	4 Conductors
Insulation
Material	Polyvinylchloride & Nylon
Wall Thickness	0.020” PVC & 0.005” Nylon
Color Code	Method 1, Table E-2
Assembly
Lay Length	Per UL Standard 1277
Ground	Uninsulated - 10 AWG, 7 Strand Bare Copper
Fillers	N/A
Binder	Clear Mylar
Shield	N/A
Drain Wire	N/A
Jacket
Material	Polyvinylchloride
Wall Thickness	0.060”
Diameter	0.545”
Color	Black
Ripcord	Yes
Cold Bend Rating	-40°C
Weight	261 lbs./Mft.
Markings
Type	Cable shall be permanently identified via surface inkjet print
Legend	LAKE CABLE E208309 10AWG 4C (UL) TC-ER PVC/NYLON UNINSULATED GROUND 600V 90’C DRY/WET PVC JACKET SUN RES DIR BUR FT4 “ROHS”
Footage Markers	Yes
Approvals
Approvals List	• Cable is suitable for use in Class I Division II hazardous locations • UL listed as Type TC-ER per UL Standard 1277 for tray cables • UL approved for Direct Burial and Sunlight Resistant applications • Individual conductors pass UL VW-1 flame test, rated THHN/VW-1 • Cable meets UL 1581 & 1202 (FT-4) 70,000 BTU/HR & ICEA T-29-520 210,000 BTU/HR requirements • Meets ICEA S-73-532, where applicable • All materials used in the manufacture of this cable are RoHS compliant • Made in the USA • Refer to NEC (NFPA 70) article 1277 for installation guidelines

Copper Price 05/02/2025 4.6635
