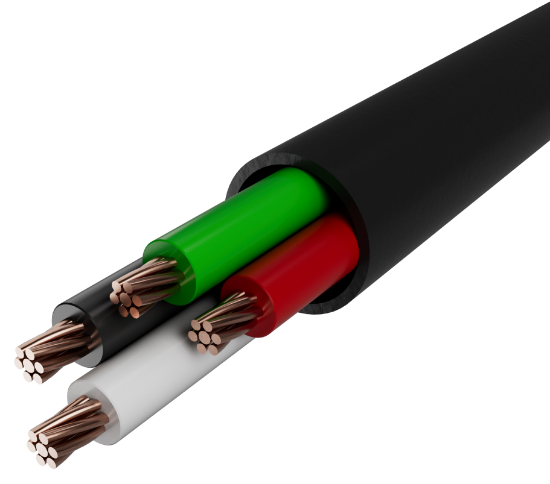

Picture of VG64/M4
For representation only. Cable constructions may vary from illustration. Please see spec sheet for complete details.

VG64/M4

Not what you were looking for?
6AWG 4C 7STR + UNINS GND BC NS VNTC (UL) TC-ER-JP 600V 90C
SKU: VG64/M4


6 AWG 4C 7 STRAND BARE COPPER WIRE WITH .030" PVC & .006" NYLON INSULATION + #8 AWG 1C 7 STRAND UNINSULATED BARE COPPER GROUND WIRE, NON-SHIELDED, FILLERS & OVERALL CLEAR MYLAR WRAP TAPE,

OVERALL .060" BLACK PVC JACKET.

(UL) TC-ER-JP-JP THWN-2/VW-1 600V 90'C DRY/WET SUN RES DIR BUR FT4 "ROHS COMPLIANT" MADE IN USA

CC: METHOD 4, BLACK & NUMBERED

RIPCORD: YES

FOOTAGE MARKERS: YES

This spec is for informational purposes and subject to change. This spec may not be suitable for submission. Contact Lake Cable for non-watermark spec sheet.
Products specifications
Attribute nameAttribute value
Jacketing
RipcordYes
Conductor
AWG Size & Stranding6 AWG 7 Strand Class B
MaterialBare Copper Wire
Conductor Count4
Insulation
MaterialPolyvinylchloride/Nylon
Wall Thickness0.030" PVC, 0.006" Nylon
Color CodeMethod 4, Black and Numbered
Assembly
Nominal Lay Length10.250"
ShieldNon-Shielded
Drain Wire8 AWG 7 Strand Bare Copper
Jacket
MaterialPolyvinylchloride
Wall Thickness.060"
ColorBlack
Outside Diameter0.756"
Weight534 lbs./Mft
Markings
TypePermanent Inkjet Surface Print
LegendLAKE CABLE E208309 6AWG 4C (UL) TC-ER THWN-2/VW-1 600V 90'C DRY/WET SUN RES DIR BUR FT4 "ROHS COMPLIANT" MADE IN USA
Footage MarkersAscending/Descending
Standards
Maximum Voltage600V
Operating Temperature Range90C
Approvals
Approvals List

• Refer to NEC (NFPA 70) article 1277 for installation guidelines
• Cable is suitable for use in Class I Division II hazardous locations
• Individual conductors pass UL VW-1 flame test, rated THHN/THWN/VW-1
• UL listed as Type TC-ER per UL Standard 1277 for tray cables
• UL approved for Direct Burial and Sunlight Resistant applications
• Cable meets UL 1581 & 1202 (FT-4) 70,000 BTU/HR & ICEA T-29-520 210,000 BTU/HR requirements
• Meets ICEA S-73-532, where applicable
• All materials used in the manufacture of this cable are RoHS compliant
• Made in the USA
