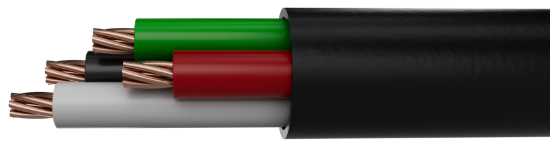

VGXH24T

Conductor

AWG Size & Stranding:

2 AWG 7 Strand

Material:

Annealed Tinned Copper

Conductor Count:

4

Insulation

Material:

Low Smoke Cross-linked Polyethylene

Wall Thickness:

0.045"

Color Code:

Orange

Assembly

Fillers:

Non-Hygroscopic Polypropylene - As required for a circular cross-section

Binder:

Clear Mylar

Ground:

Tinned Copper

6 AWG 7 Strand

Jacket

Material:

Low Smoke FR Zero Halogen Polyolefin (LSFR-0HPO)

Wall Thickness:

0.080"

Diameter:

1.100"

Weight:

1262 lbs/Mft

Markings

Type:

Cable shall be permanently identified via surface inkjet print

Legend:

LAKE CABLE E208309 2AWG 4C (UL) TC-ST1-ER XHHW-2 600V 90C DRY/WET UNINSULATED GROUND LSZH JACKET SUN RES DIR BUR “ROHS” IEEE 1202 FT4

Footage Markers:

Yes

Approvals

Approvals List:

• Refer to NEC (NFPA 70) article 336 for installation guidelines
• Cable is suitable for use in Class I Division 2 hazardous locations
• *UL listed as Type TC-ST1 per UL Standard 1277 for tray cables with 2 conductors
• *UL listed as Type TC-ST1-ER per UL Standard 1277 for tray cables 3+ conductors
• Cable meets Limited Smoke Tests (ST1) from UL Standard 1685
• UL approved for Direct Burial, Sunlight Resistant & Low Smoke applications
• Cable meets IEEE 383 & UL 1581 70,000 BTU/HR flame test requirements
• Meets ICEA S-73-532, where applicable
• Cable meets Cold Bend -25°C per UL standard 1277
• Due to the frequent updates to regulations, specifically California Proposition 65, EU REACH
• SVHCs and ROHS please contact Lake Cable for the most up to date compliance statement.
