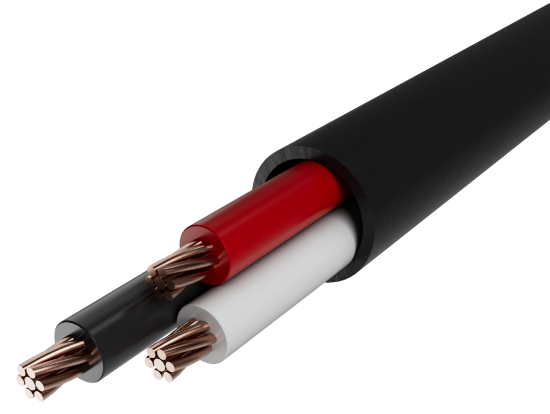

Picture of VIG103
For representation only. Cable constructions may vary from illustration. Please see spec sheet for complete details.

VIG103

Not what you were looking for?
10AWG 3C + INS GND 7STR BC VNTC UNS (UL) TC-ER-JP 600V 90C
SKU: VIG103


10 AWG 3C 7 STRAND BARE COPPER WIRE WITH .020" PVC & .005" NYLON INSULATION + #10 AWG 1C 7 STRAND BARE COPPER WIRE WITH .020" PVC & .005" NYLON GREEN INSULATED GROUND WIRE, FILLERS & OVERALL CLEAR MYLAR WRAP TAPE, OVERALL .045" BLACK PVC JACKET.

(UL) TC-ER-JP-JP 600V 90'C DRY/WET SUN RES DIR BUR FT4 "ROHS COMPLIANT" MADE IN USA

CC: METHOD 1, TABLE E-2 + GREEN GROUND

RIPCORD: YES

FOOTAGE MARKERS: YES

This spec is for informational purposes and subject to change. This spec may not be suitable for submission. Contact Lake Cable for non-watermark spec sheet.
Products specifications
Attribute nameAttribute value
Jacketing
RipcordYes
Conductor
AWG Size & Stranding10 AWG 7 Strand Class B
MaterialBare Copper Wire
Conductor Count3
Insulation
MaterialPolyvinylchloride/Nylon
Wall Thickness0.020" PVC, 0.005" Nylon
Color CodeMethod 1, Table E-2, Black, Red, Blue + Green Insulated Ground
Assembly
Lay LengthPer UL Standard 1277
GroundInsulated (Green)- 10 AWG 7 Strand Bare Copper
FillersN/A
BinderN/A
ShieldNon-Shielded
Drain Wire10 AWG 7 Strand Bare Copper
Nominal Lay Length6.5"
Jacket
MaterialPolyvinylchloride
Wall Thickness.045"
Diameter0.488”
ColorBlack
RipcordYes
Cold Bend Rating-40°C
Weight199 lbs./Mft
Outside Diameter0.488"
Markings
TypePermanent Inkjet Surface Print
LegendLAKE CABLE E208309 10AWG 3C (UL) TC-ER 600V 90'C DRY/WET SUN RES DIR BUR FT4 "ROHS COMPLIANT" MADE IN USA
Footage MarkersAscending/Descending
Standards
Maximum Voltage600V
Operating Temperature Range90C
Approvals
Approvals List

• Refer to NEC (NFPA 70) article 1277 for installation guidelines
• Cable is suitable for use in Class I Division II hazardous locations
• Individual conductors pass UL VW-1 flame test, rated THHN/THWN/VW-1
• UL listed as Type TC-ER per UL Standard 1277 for tray cables
• UL approved for Direct Burial and Sunlight Resistant applications
• Cable meets UL 1581 & 1202 (FT-4) 70,000 BTU/HR & ICEA T-29-520 210,000 BTU/HR requirements
• Meets ICEA S-73-532, where applicable
• All materials used in the manufacture of this cable are RoHS compliant
• Made in the USA
