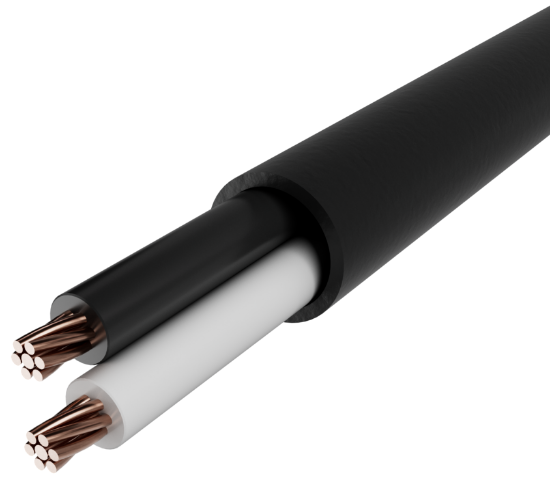

VIG122/M1

Conductor

AWG Size & Stranding:

12 AWG 7 Strand Class B

Material:

Bare Copper Wire

Conductor Count:

2

Approvals

Approvals List:

• Refer to NEC (NFPA 70) article 1277 for installation guidelines
• Cable is suitable for use in Class I Division II hazardous locations
• Individual conductors pass UL VW-1 flame test, rated THHN/THWN/VW-1
• UL listed as Type TC-ER per UL Standard 1277 for tray cables
• UL approved for Direct Burial, Sunlight and Oil I Resistant applications
• Cable meets UL 1581 & 1202 (FT-4) 70,000 BTU/HR & ICEA T-29-520 210,000 BTU/HR requirements
• Meets ICEA S-73-532, where applicable
• All materials used in the manufacture of this cable are RoHS compliant
• Made in the USA

Insulation

Material:

Polyvinylchloride/Nylon

Wall Thickness:

0.015" PVC, 0.005" Nylon

Color Code:

Method 1, Table E-1, Black, White + Green Insulated Ground

Assembly

Nominal Lay Length:

4.5"

Shield:

Non-Shielded

Drain Wire:

12 AWG 7 Strand Bare Copper

Jacket

Material:

Polyvinylchloride

Wall Thickness:

.045"

Color:

Black

Outside Diameter:

0.370"

Weight:

105 lbs./Mft

Jacketing

Ripcord:

Yes

Markings

Type:

Permanent Inkjet Surface Print

Legend:

LAKE CABLE E208309 12AWG 2C (UL) TC-ER 600V 90'C DRY/WET SUN RES DIR BUR OIL RES I FT-4 "ROHS COMPLIANT" MADE IN USA

Footage Markers:

Ascending/Descending

Standards

Maximum Voltage:

600V

Operating Temperature Range:

90C
