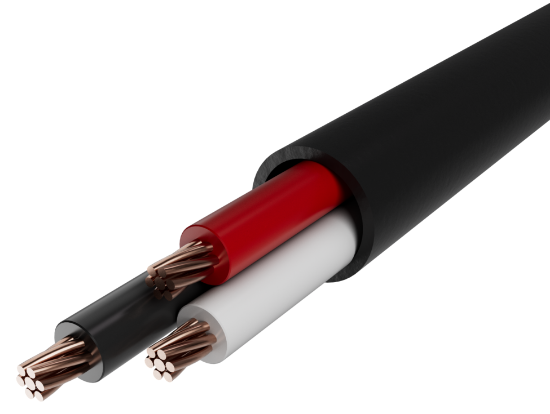

Picture of VIG143
For representation only. Cable constructions may vary from illustration. Please see spec sheet for complete details.

VIG143

Not what you were looking for?
14AWG 3C 7STR BC + INS GND NS VNTC (UL) TC-ER-JP 600V 90C
SKU: VIG143


14 AWG 3C 7 STRAND BARE COPPER WIRE WITH .015" PVC & .005" NYLON INSULATION + 14 AWG 1C 7 STRAND GREEN INSULATED BARE COPPER GROUND WIRE, OVERALL .045" BLACK PVC JACKET.

(UL) TC-ER-JP-JP 600V 90'C DRY/WET SUN RES DIR BUR FT4 "ROHS COMPLIANT" MADE IN USA

CC: METHOD 1, TABLE E-2 + GREEN INSULATED GROUND

RIPCORD: YES

FOOTAGE MARKERS: YES

This spec is for informational purposes and subject to change. This spec may not be suitable for submission. Contact Lake Cable for non-watermark spec sheet.
Products specifications
Attribute nameAttribute value
Jacketing
RipcordYes
Conductor
AWG Size & Stranding14 AWG 7 Strand Class B
MaterialBare Copper Wire
Conductor Count3
Insulation
MaterialPolyvinylchloride/Nylon
Wall Thickness0.015" PVC, 0.005" Nylon
Color CodeMethod 1, Table E-2, Black, Red, Blue + Green Insulated Ground
Assembly
Nominal Lay Length4.5"
ShieldNon-Shielded
Drain Wire14 AWG 7 Strand Bare Copper
Jacket
MaterialPolyvinylchloride
Wall Thickness.045"
ColorBlack
Outside Diameter0.362"
Weight95 lbs./Mft
Markings
TypePermanent Inkjet Surface Print
LegendLAKE CABLE E208309 14AWG 3C (UL) TC-ER 600V 90'C DRY/WET SUN RES DIR BUR FT4 "ROHS II" MADE IN USA
Footage MarkersAscending/Descending
Standards
Maximum Voltage600V
Operating Temperature Range90C
Approvals
Approvals List

• Refer to NEC (NFPA 70) article 1277 for installation guidelines
• Cable is suitable for use in Class I Division II hazardous locations
• Individual conductors pass UL VW-1 flame test, rated THHN/THWN/VW-1
• UL listed as Type TC-ER per UL Standard 1277 for tray cables
• UL approved for Direct Burial and Sunlight Resistant applications
• Cable meets UL 1581 & 1202 (FT-4) 70,000 BTU/HR & ICEA T-29-520 210,000 BTU/HR requirements
• Meets ICEA S-73-532, where applicable
• All materials used in the manufacture of this cable are RoHS compliant
• Made in the USA
