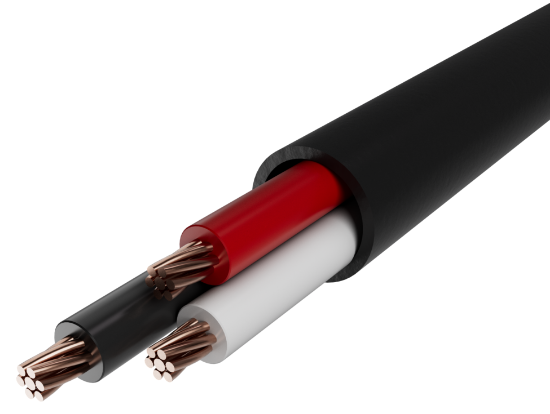

4 AWG 3 conductor 7 strand bare copper with polyvinylchloride and nylon insulation, a polyvinylchloride and nylon insulated bare copper ground conductor unshielded with an overall PVC jacket 600V control tray cable, approved for use in SUN RES DIR BUR 90°C applications.
SKU: VIG43

• Individual conductors pass UL VW-1 flame test, rated THHN/THWN/VW-1
• Cable meets UL 1581 & 1202 (FT-4) 70,000 BTU/HR & ICEA T-29-520 210,000 BTU/HR requirements
• Meets ICEA S-95-658, where applicable
• All materials used in the manufacture of this cable are RoHS compliant
• Made in the USA
• UL listed as Type TC-ER per UL Standard 1277 for tray cables
• UL approved for Direct Burial and Sunlight Resistant applications
• Refer to NEC (NFPA 70) article 1277 for installation guidelines
• Cable is suitable for use in Class I Division II hazardous locations
This spec is for informational purposes and subject to change. This spec may not be suitable for submission. Contact Lake Cable for non-watermark spec sheet.
Products specifications
Attribute nameAttribute value
Conductor
AWG Size & Stranding4 AWG, 7 Strands Class B
MaterialAnnealed Bare Copper
Conductor Count3 Conductors
Insulation
MaterialPolyvinylchloride & Nylon
Wall Thickness0.040” PVC & 0.007” Nylon
Color CodeMethod 1, Table E-2 + (1) Green Insulated Ground
Assembly
Lay LengthPer UL Standard 1277
GroundInsulated (Green)- 8 AWG 7 Strand Bare Copper
FillersNon-Hygroscopic Polypropylene - As required for a circular cross-section
BinderClear Mylar
ShieldN/A
Drain WireN/A
Jacket
MaterialPolyvinylchloride
Wall Thickness0.060”
Diameter0.895”
ColorBlack
RipcordYes
Cold Bend Rating-40°C
Weight729 lbs./Mft.
Markings
TypeCable shall be permanently identified via surface inkjet print
LegendLAKE CABLE E208309 4AWG 3C (UL) TC-ER PVC/NYLON INSULATED GROUND 600V 90’C DRY/WET PVC JACKET SUN RES DIR BUR FT4 “ROHS”
Footage MarkersYes
