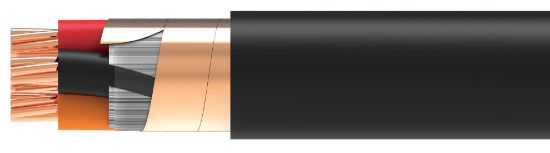

VXC1012SCU

10 AWG 12 conductor 7 strand bare copper with XLPE insulation, a helical bare copper tape shield and an overall CPE jacket 600V control tray cable, approved for use in SUN RES DIR BUR OIL RES I & II 90°C applications.
SKU: VXC1012SCU

• Refer to NEC (NFPA 70) article 1277 for installation guidelines
• Cable is suitable for use in Class I Division II hazardous locations
• Individual conductors pass UL VW-1 flame test, rated XHHW-2/VW-1
• UL listed as Type TC-ER per UL Standard 1277 for tray cables
• UL approved for Direct Burial, Sunlight and Oil I & II Resistant applications
• Cable meets UL 1581 & 1202 (FT-4) 70,000 BTU/HR & ICEA T-29-520 210,000 BTU/HR requirements
• Meets ICEA S-73-532, where applicable
• All materials used in the manufacture of this cable are RoHS compliant
• Made in the USA
This spec is for informational purposes and subject to change. This spec may not be suitable for submission. Contact Lake Cable for non-watermark spec sheet.
Products specifications
Attribute nameAttribute value
Conductor
AWG Size & Stranding10 AWG 7 Strands Class B
MaterialAnnealed Bare Copper
Conductor Count12 Conductors
Insulation
MaterialCross-linked Polyethylene
Wall Thickness0.030”
Color CodeMethod 1, Table E-2
Assembly
Lay LengthPer UL Standard 1277
FillersN/A
BinderClear Mylar
Shield0.005” Helical Bare Copper Tape – 20% minimum overlap
Drain WireN/A
Jacket
MaterialChlorinated Polyethylene
Wall Thickness0.080”
Diameter0.909”
ColorBlack
RipcordYes
Cold Bend Rating-25°C
Weight735 lbs./Mft.
Markings
TypeCable shall be permanently identified via surface inkjet print
LegendLAKE CABLE E208309 10AWG 12C (UL) TC-ER XHHW-2/VW-1 600V 90’C DRY/WET BARE COPPER TAPE SHIELD CPE JACKET SUN RES DIR BUR OIL RES I & II FT4 “ROHS”
Footage MarkersYes
